Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: ComplaintHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: ComplaintV2R40.xsd
Abstract

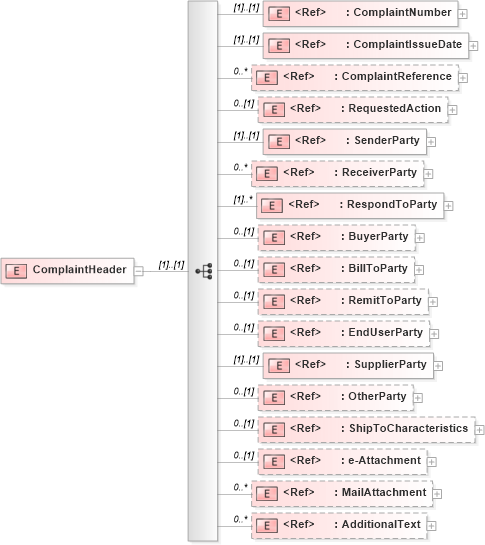

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into MailAttachment in schema papinetcommondefsv2r40_xsd Drilldown into e-Attachment in schema papinetcommondefsv2r40_xsd Drilldown into ShipToCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into EndUserParty in schema papinetcommondefsv2r40_xsd Drilldown into RemitToParty in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into RespondToParty in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into RequestedAction in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintReference in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintIssueDate in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintNumber in schema papinetcommondefsv2r40_xsdXSD Diagram of ComplaintHeader in schema complaintv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ComplaintHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ComplaintNumber" />
            <xs:element ref="ComplaintIssueDate" />
            <xs:element ref="ComplaintReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="RequestedAction" minOccurs="0" />
            <xs:element ref="SenderParty" />
            <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="RespondToParty" maxOccurs="unbounded" />
            <xs:element ref="BuyerParty" minOccurs="0" />
            <xs:element ref="BillToParty" minOccurs="0" />
            <xs:element ref="RemitToParty" minOccurs="0" />
            <xs:element ref="EndUserParty" minOccurs="0" />
            <xs:element ref="SupplierParty" />
            <xs:element ref="OtherParty" minOccurs="0" />
            <xs:element ref="ShipToCharacteristics" minOccurs="0" />
            <xs:element ref="e-Attachment" minOccurs="0" />
            <xs:element ref="MailAttachment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ComplaintNumber pn:ComplaintNumber (1) (1)
ComplaintIssueDate pn:ComplaintIssueDate (1) (1)
ComplaintReference pn:ComplaintReference 0 unbounded
RequestedAction pn:RequestedAction 0 (1)
SenderParty pn:SenderParty (1) (1)
ReceiverParty pn:ReceiverParty 0 unbounded
RespondToParty pn:RespondToParty (1) unbounded
BuyerParty pn:BuyerParty 0 (1)
BillToParty pn:BillToParty 0 (1)
RemitToParty pn:RemitToParty 0 (1)
EndUserParty pn:EndUserParty 0 (1)
SupplierParty pn:SupplierParty (1) (1)
OtherParty pn:OtherParty 0 (1)
ShipToCharacteristics pn:ShipToCharacteristics 0 (1)
e-Attachment pn:e-Attachment 0 (1)
MailAttachment pn:MailAttachment 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
