Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: ComplaintResponseReason
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

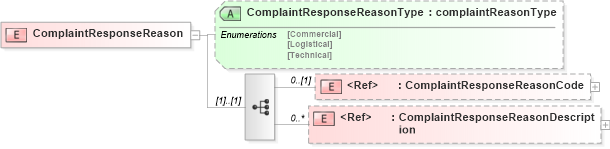

Collapse XSD Schema Diagram:
Drilldown into ComplaintResponseReasonDescription in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseReasonCode in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseReasonType in schema papinetcommondefsv2r40_xsdXSD Diagram of ComplaintResponseReason in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ComplaintResponseReason">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ComplaintResponseReasonCode" minOccurs="0" />
            <xs:element ref="ComplaintResponseReasonDescription" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="ComplaintResponseReasonType" type="complaintReasonType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ComplaintResponseReasonCode pn:ComplaintResponseReasonCode 0 (1)
ComplaintResponseReasonDescription pn:ComplaintResponseReasonDescription 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ComplaintResponseReasonType pn:ComplaintResponseReasonType (Optional)
