Definition Type: Element
Name: DeliveryDestination
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

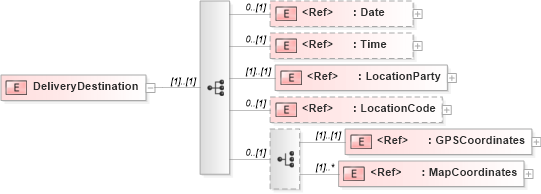

Collapse XSD Schema Diagram:
Drilldown into MapCoordinates in schema papinetcommondefsv2r40_xsd Drilldown into GPSCoordinates in schema papinetcommondefsv2r40_xsd Drilldown into LocationCode in schema papinetcommondefsv2r40_xsd Drilldown into LocationParty in schema papinetcommondefsv2r40_xsd Drilldown into Time in schema papinetcommondefsv2r40_xsd Drilldown into Date in schema papinetcommondefsv2r40_xsdXSD Diagram of DeliveryDestination in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="DeliveryDestination">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Date" minOccurs="0" />
            <xs:element ref="Time" minOccurs="0" />
            <xs:element ref="LocationParty" />
            <xs:element ref="LocationCode" minOccurs="0" />
            <xs:choice minOccurs="0">
                <xs:element ref="GPSCoordinates" />
                <xs:element ref="MapCoordinates" maxOccurs="unbounded" />
            </xs:choice>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Date pn:Date 0 (1)
Time pn:Time 0 (1)
LocationParty pn:LocationParty (1) (1)
LocationCode pn:LocationCode 0 (1)
GPSCoordinates pn:GPSCoordinates (1) (1)
MapCoordinates pn:MapCoordinates (1) unbounded
