Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: DeliveryInstructionSequenceLineItem
Namespace: http://www.papinet.org/v2r40
Containing Schema: DeliveryInstructionV2R40.xsd
Abstract

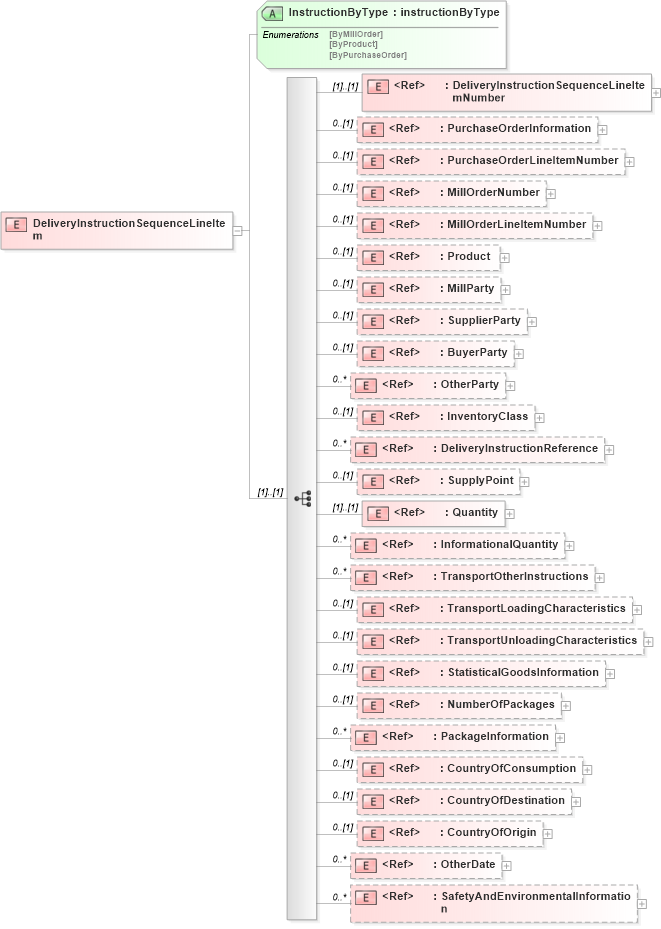

Collapse XSD Schema Diagram:
Drilldown into SafetyAndEnvironmentalInformation in schema papinetcommondefsv2r40_xsd Drilldown into OtherDate in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfOrigin in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfDestination in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfConsumption in schema papinetcommondefsv2r40_xsd Drilldown into PackageInformation in schema papinetcommondefsv2r40_xsd Drilldown into NumberOfPackages in schema papinetcommondefsv2r40_xsd Drilldown into StatisticalGoodsInformation in schema papinetcommondefsv2r40_xsd Drilldown into TransportUnloadingCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportLoadingCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportOtherInstructions in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into SupplyPoint in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionReference in schema papinetcommondefsv2r40_xsd Drilldown into InventoryClass in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into MillParty in schema papinetcommondefsv2r40_xsd Drilldown into Product in schema papinetcommondefsv2r40_xsd Drilldown into MillOrderLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into MillOrderNumber in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderInformation in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionSequenceLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into InstructionByType in schema deliveryinstructionv2r40_xsdXSD Diagram of DeliveryInstructionSequenceLineItem in schema deliveryinstructionv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="DeliveryInstructionSequenceLineItem">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="DeliveryInstructionSequenceLineItemNumber" />
            <xs:element ref="PurchaseOrderInformation" minOccurs="0" />
            <xs:element ref="PurchaseOrderLineItemNumber" minOccurs="0" />
            <xs:element ref="MillOrderNumber" minOccurs="0" />
            <xs:element ref="MillOrderLineItemNumber" minOccurs="0" />
            <xs:element ref="Product" minOccurs="0" />
            <xs:element ref="MillParty" minOccurs="0" />
            <xs:element ref="SupplierParty" minOccurs="0" />
            <xs:element ref="BuyerParty" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="InventoryClass" minOccurs="0" />
            <xs:element ref="DeliveryInstructionReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="SupplyPoint" minOccurs="0" />
            <xs:element ref="Quantity" />
            <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TransportOtherInstructions" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TransportLoadingCharacteristics" minOccurs="0" />
            <xs:element ref="TransportUnloadingCharacteristics" minOccurs="0" />
            <xs:element ref="StatisticalGoodsInformation" minOccurs="0" />
            <xs:element ref="NumberOfPackages" minOccurs="0" />
            <xs:element ref="PackageInformation" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="CountryOfConsumption" minOccurs="0" />
            <xs:element ref="CountryOfDestination" minOccurs="0" />
            <xs:element ref="CountryOfOrigin" minOccurs="0" />
            <xs:element ref="OtherDate" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="SafetyAndEnvironmentalInformation" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="InstructionByType" type="instructionByType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryInstructionSequenceLineItemNumber pn:DeliveryInstructionSequenceLineItemNumber (1) (1)
PurchaseOrderInformation pn:PurchaseOrderInformation 0 (1)
PurchaseOrderLineItemNumber pn:PurchaseOrderLineItemNumber 0 (1)
MillOrderNumber pn:MillOrderNumber 0 (1)
MillOrderLineItemNumber pn:MillOrderLineItemNumber 0 (1)
Product pn:Product 0 (1)
MillParty pn:MillParty 0 (1)
SupplierParty pn:SupplierParty 0 (1)
BuyerParty pn:BuyerParty 0 (1)
OtherParty pn:OtherParty 0 unbounded
InventoryClass pn:InventoryClass 0 (1)
DeliveryInstructionReference pn:DeliveryInstructionReference 0 unbounded
SupplyPoint pn:SupplyPoint 0 (1)
Quantity pn:Quantity (1) (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
TransportOtherInstructions pn:TransportOtherInstructions 0 unbounded
TransportLoadingCharacteristics pn:TransportLoadingCharacteristics 0 (1)
TransportUnloadingCharacteristics pn:TransportUnloadingCharacteristics 0 (1)
StatisticalGoodsInformation pn:StatisticalGoodsInformation 0 (1)
NumberOfPackages pn:NumberOfPackages 0 (1)
PackageInformation pn:PackageInformation 0 unbounded
CountryOfConsumption pn:CountryOfConsumption 0 (1)
CountryOfDestination pn:CountryOfDestination 0 (1)
CountryOfOrigin pn:CountryOfOrigin 0 (1)
OtherDate pn:OtherDate 0 unbounded
SafetyAndEnvironmentalInformation pn:SafetyAndEnvironmentalInformation 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
InstructionByType pn:InstructionByType Required
