Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: DeliveryMessageWood
Namespace: http://www.papinet.org/v2r40
Containing Schema: DeliveryMessageWoodV2R40.xsd
Abstract

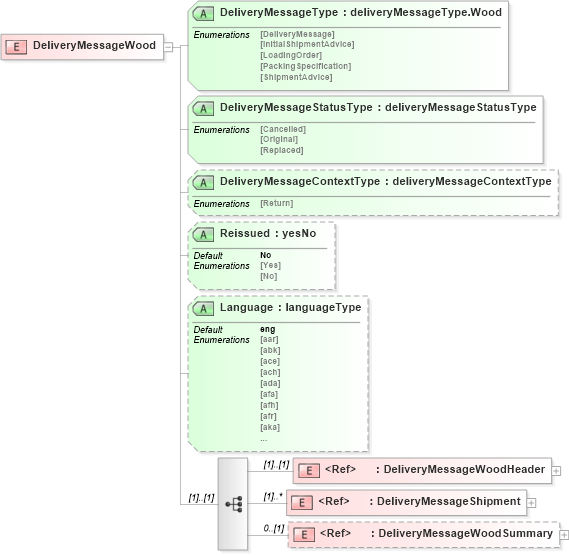

Collapse XSD Schema Diagram:
Drilldown into DeliveryMessageWoodSummary in schema deliverymessagewoodv2r40_xsd Drilldown into DeliveryMessageShipment in schema deliverymessagewoodv2r40_xsd Drilldown into DeliveryMessageWoodHeader in schema deliverymessagewoodv2r40_xsd Drilldown into Language in schema deliverymessagewoodv2r40_xsd Drilldown into Reissued in schema deliverymessagewoodv2r40_xsd Drilldown into DeliveryMessageContextType in schema deliverymessagewoodv2r40_xsd Drilldown into DeliveryMessageStatusType in schema deliverymessagewoodv2r40_xsd Drilldown into DeliveryMessageType in schema deliverymessagewoodv2r40_xsdXSD Diagram of DeliveryMessageWood in schema deliverymessagewoodv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="DeliveryMessageWood">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="DeliveryMessageWoodHeader" />
            <xs:element ref="DeliveryMessageShipment" maxOccurs="unbounded" />
            <xs:element ref="DeliveryMessageWoodSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="DeliveryMessageType" type="deliveryMessageType.Wood" use="required" />
        <xs:attribute name="DeliveryMessageStatusType" type="deliveryMessageStatusType" use="required" />
        <xs:attribute name="DeliveryMessageContextType" type="deliveryMessageContextType" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryMessageWoodHeader pn:DeliveryMessageWoodHeader (1) (1)
DeliveryMessageShipment pn:DeliveryMessageShipment (1) unbounded
DeliveryMessageWoodSummary pn:DeliveryMessageWoodSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DeliveryMessageType pn:DeliveryMessageType Required
DeliveryMessageStatusType pn:DeliveryMessageStatusType Required
DeliveryMessageContextType pn:DeliveryMessageContextType (Optional)
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
