Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: ComplexType
Name: dimensionMeasurementClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

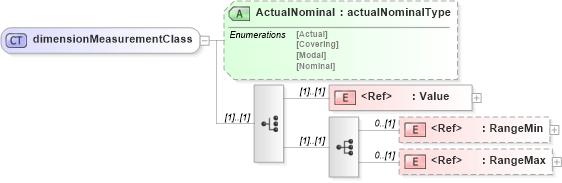

Collapse XSD Schema Diagram:
Drilldown into RangeMax in schema papinetcommondefsv2r40_xsd Drilldown into RangeMin in schema papinetcommondefsv2r40_xsd Drilldown into Value in schema papinetcommondefsv2r40_xsd Drilldown into ActualNominal in schema papinetcommondefsv2r40_xsdXSD Diagram of dimensionMeasurementClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="dimensionMeasurementClass">
    <xs:choice>
        <xs:element ref="Value" />
        <xs:sequence>
            <xs:element ref="RangeMin" minOccurs="0" />
            <xs:element ref="RangeMax" minOccurs="0" />
        </xs:sequence>
    </xs:choice>
    <xs:attribute name="ActualNominal" type="actualNominalType" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Value pn:Value (1) (1)
RangeMin pn:RangeMin 0 (1)
RangeMax pn:RangeMax 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ActualNominal pn:ActualNominal (Optional)
Collapse Derivation Tree:
Collapse References:
pn:Height, pn:Length, pn:Width
