Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: DocumentReferenceInformation
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

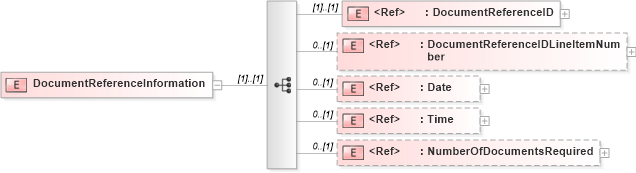

Collapse XSD Schema Diagram:
Drilldown into NumberOfDocumentsRequired in schema papinetcommondefsv2r40_xsd Drilldown into Time in schema papinetcommondefsv2r40_xsd Drilldown into Date in schema papinetcommondefsv2r40_xsd Drilldown into DocumentReferenceIDLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into DocumentReferenceID in schema papinetcommondefsv2r40_xsdXSD Diagram of DocumentReferenceInformation in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="DocumentReferenceInformation">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="DocumentReferenceID" />
            <xs:element ref="DocumentReferenceIDLineItemNumber" minOccurs="0" />
            <xs:element ref="Date" minOccurs="0" />
            <xs:element ref="Time" minOccurs="0" />
            <xs:element ref="NumberOfDocumentsRequired" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentReferenceID pn:DocumentReferenceID (1) (1)
DocumentReferenceIDLineItemNumber pn:DocumentReferenceIDLineItemNumber 0 (1)
Date pn:Date 0 (1)
Time pn:Time 0 (1)
NumberOfDocumentsRequired pn:NumberOfDocumentsRequired 0 (1)
