Definition Type: Element
Name: Edge
Namespace: http://www.papinet.org/v2r40
Type: pn:edgeClass
Containing Schema: papiNetCommonDefsV2R40.xsd
MinOccurs 0
MaxOccurs 4
Abstract

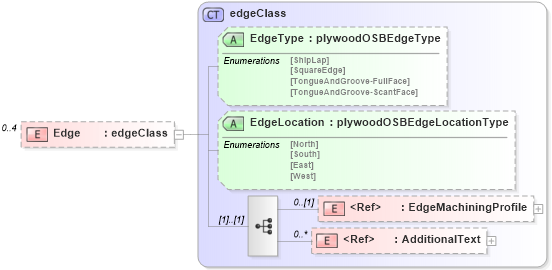

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into EdgeMachiningProfile in schema papinetcommondefsv2r40_xsd Drilldown into EdgeLocation in schema papinetcommondefsv2r40_xsd Drilldown into EdgeType in schema papinetcommondefsv2r40_xsd Drilldown into edgeClass in schema papinetcommondefsv2r40_xsdXSD Diagram of Edge in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Edge" type="edgeClass" minOccurs="0" maxOccurs="4" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EdgeMachiningProfile pn:EdgeMachiningProfile 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
EdgeType pn:EdgeType (Optional)
EdgeLocation pn:EdgeLocation (Optional)
Collapse Derivation Tree:
