Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: GoodsReceipt
Namespace: http://www.papinet.org/v2r40
Containing Schema: GoodsReceiptV2R40.xsd
Abstract

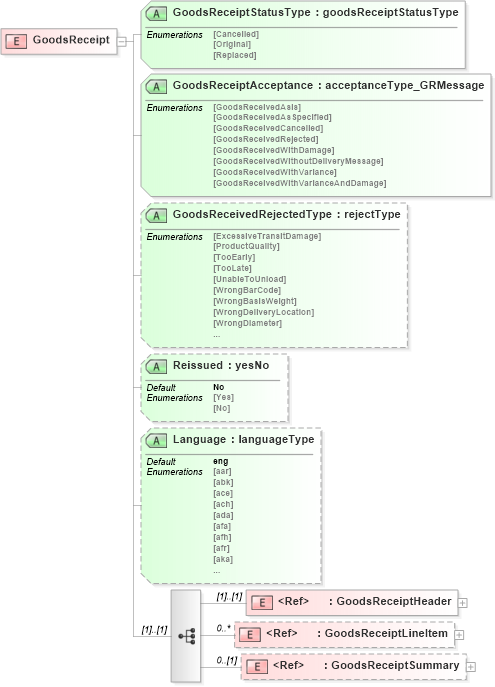

Collapse XSD Schema Diagram:
Drilldown into GoodsReceiptSummary in schema goodsreceiptv2r40_xsd Drilldown into GoodsReceiptLineItem in schema goodsreceiptv2r40_xsd Drilldown into GoodsReceiptHeader in schema goodsreceiptv2r40_xsd Drilldown into Language in schema goodsreceiptv2r40_xsd Drilldown into Reissued in schema goodsreceiptv2r40_xsd Drilldown into GoodsReceivedRejectedType in schema goodsreceiptv2r40_xsd Drilldown into GoodsReceiptAcceptance in schema goodsreceiptv2r40_xsd Drilldown into GoodsReceiptStatusType in schema goodsreceiptv2r40_xsdXSD Diagram of GoodsReceipt in schema goodsreceiptv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="GoodsReceipt">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="GoodsReceiptHeader" />
            <xs:element ref="GoodsReceiptLineItem" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="GoodsReceiptSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="GoodsReceiptStatusType" type="goodsReceiptStatusType" use="required" />
        <xs:attribute name="GoodsReceiptAcceptance" type="acceptanceType_GRMessage" use="required" />
        <xs:attribute name="GoodsReceivedRejectedType" type="rejectType" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GoodsReceiptHeader pn:GoodsReceiptHeader (1) (1)
GoodsReceiptLineItem pn:GoodsReceiptLineItem 0 unbounded
GoodsReceiptSummary pn:GoodsReceiptSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
GoodsReceiptStatusType pn:GoodsReceiptStatusType Required
GoodsReceiptAcceptance pn:GoodsReceiptAcceptance Required
GoodsReceivedRejectedType pn:GoodsReceivedRejectedType (Optional)
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
