Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: ComplexType
Name: goodsReceiptHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

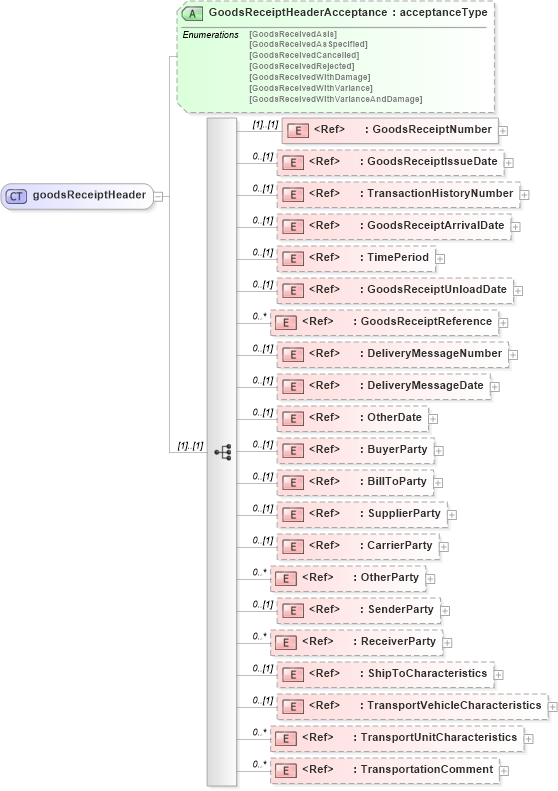

Collapse XSD Schema Diagram:
Drilldown into TransportationComment in schema papinetcommondefsv2r40_xsd Drilldown into TransportUnitCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportVehicleCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ShipToCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into CarrierParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into OtherDate in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryMessageDate in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryMessageNumber in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptReference in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptUnloadDate in schema papinetcommondefsv2r40_xsd Drilldown into TimePeriod in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptArrivalDate in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptIssueDate in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptNumber in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptHeaderAcceptance in schema papinetcommondefsv2r40_xsdXSD Diagram of goodsReceiptHeader in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="goodsReceiptHeader">
    <xs:sequence>
        <xs:element ref="GoodsReceiptNumber" />
        <xs:element ref="GoodsReceiptIssueDate" minOccurs="0" />
        <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
        <xs:element ref="GoodsReceiptArrivalDate" minOccurs="0" />
        <xs:element ref="TimePeriod" minOccurs="0" />
        <xs:element ref="GoodsReceiptUnloadDate" minOccurs="0" />
        <xs:element ref="GoodsReceiptReference" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="DeliveryMessageNumber" minOccurs="0" />
        <xs:element ref="DeliveryMessageDate" minOccurs="0" />
        <xs:element ref="OtherDate" minOccurs="0" />
        <xs:element ref="BuyerParty" minOccurs="0" />
        <xs:element ref="BillToParty" minOccurs="0" />
        <xs:element ref="SupplierParty" minOccurs="0" />
        <xs:element ref="CarrierParty" minOccurs="0" />
        <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="SenderParty" minOccurs="0" />
        <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="ShipToCharacteristics" minOccurs="0" />
        <xs:element ref="TransportVehicleCharacteristics" minOccurs="0" />
        <xs:element ref="TransportUnitCharacteristics" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="TransportationComment" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="GoodsReceiptHeaderAcceptance" type="acceptanceType" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GoodsReceiptNumber pn:GoodsReceiptNumber (1) (1)
GoodsReceiptIssueDate pn:GoodsReceiptIssueDate 0 (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
GoodsReceiptArrivalDate pn:GoodsReceiptArrivalDate 0 (1)
TimePeriod pn:TimePeriod 0 (1)
GoodsReceiptUnloadDate pn:GoodsReceiptUnloadDate 0 (1)
GoodsReceiptReference pn:GoodsReceiptReference 0 unbounded
DeliveryMessageNumber pn:DeliveryMessageNumber 0 (1)
DeliveryMessageDate pn:DeliveryMessageDate 0 (1)
OtherDate pn:OtherDate 0 (1)
BuyerParty pn:BuyerParty 0 (1)
BillToParty pn:BillToParty 0 (1)
SupplierParty pn:SupplierParty 0 (1)
CarrierParty pn:CarrierParty 0 (1)
OtherParty pn:OtherParty 0 unbounded
SenderParty pn:SenderParty 0 (1)
ReceiverParty pn:ReceiverParty 0 unbounded
ShipToCharacteristics pn:ShipToCharacteristics 0 (1)
TransportVehicleCharacteristics pn:TransportVehicleCharacteristics 0 (1)
TransportUnitCharacteristics pn:TransportUnitCharacteristics 0 unbounded
TransportationComment pn:TransportationComment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
GoodsReceiptHeaderAcceptance pn:GoodsReceiptHeaderAcceptance (Optional)
Collapse Derivation Tree:
Collapse References:
pn:GoodsReceiptHeader
