Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: GoodsReceiptPackage
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

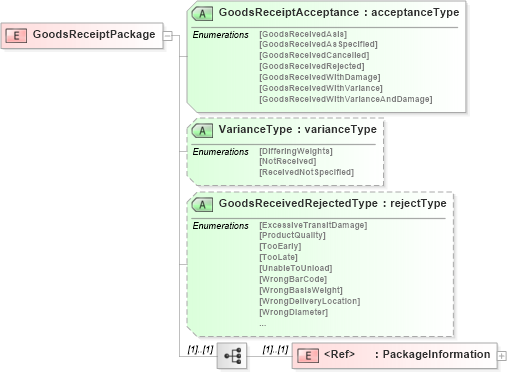

Collapse XSD Schema Diagram:
Drilldown into PackageInformation in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceivedRejectedType in schema papinetcommondefsv2r40_xsd Drilldown into VarianceType in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptAcceptance in schema papinetcommondefsv2r40_xsdXSD Diagram of GoodsReceiptPackage in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="GoodsReceiptPackage">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PackageInformation" />
        </xs:sequence>
        <xs:attribute name="GoodsReceiptAcceptance" type="acceptanceType" use="required" />
        <xs:attribute name="VarianceType" type="varianceType" />
        <xs:attribute name="GoodsReceivedRejectedType" type="rejectType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PackageInformation pn:PackageInformation (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
GoodsReceiptAcceptance pn:GoodsReceiptAcceptance Required
VarianceType pn:VarianceType (Optional)
GoodsReceivedRejectedType pn:GoodsReceivedRejectedType (Optional)
