Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: InfoRequest
Namespace: http://www.papinet.org/v2r40
Containing Schema: InfoRequestV2R40.xsd
Abstract

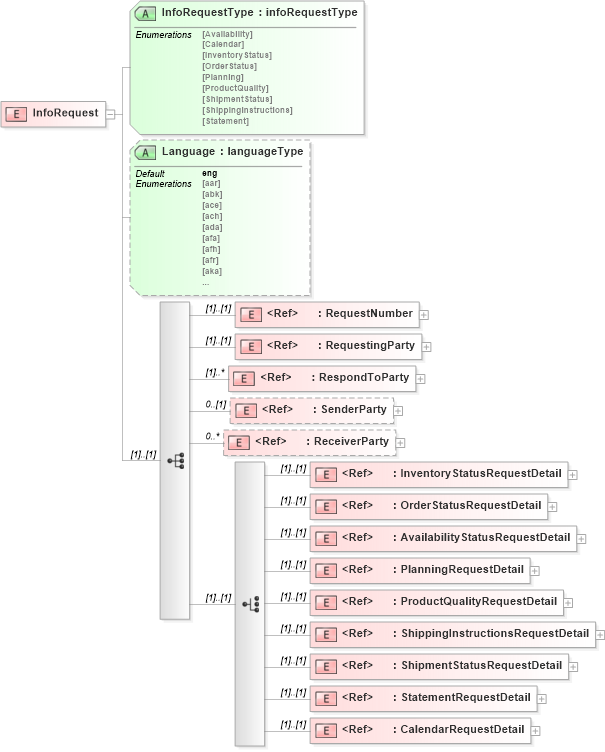

Collapse XSD Schema Diagram:
Drilldown into CalendarRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into StatementRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into ShipmentStatusRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into ShippingInstructionsRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into ProductQualityRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into PlanningRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into AvailabilityStatusRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into OrderStatusRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into InventoryStatusRequestDetail in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into RespondToParty in schema papinetcommondefsv2r40_xsd Drilldown into RequestingParty in schema papinetcommondefsv2r40_xsd Drilldown into RequestNumber in schema papinetcommondefsv2r40_xsd Drilldown into Language in schema inforequestv2r40_xsd Drilldown into InfoRequestType in schema inforequestv2r40_xsdXSD Diagram of InfoRequest in schema inforequestv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="InfoRequest">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="RequestNumber" />
            <xs:element ref="RequestingParty" />
            <xs:element ref="RespondToParty" maxOccurs="unbounded" />
            <xs:element ref="SenderParty" minOccurs="0" />
            <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:choice>
                <xs:element ref="InventoryStatusRequestDetail" />
                <xs:element ref="OrderStatusRequestDetail" />
                <xs:element ref="AvailabilityStatusRequestDetail" />
                <xs:element ref="PlanningRequestDetail" />
                <xs:element ref="ProductQualityRequestDetail" />
                <xs:element ref="ShippingInstructionsRequestDetail" />
                <xs:element ref="ShipmentStatusRequestDetail" />
                <xs:element ref="StatementRequestDetail" />
                <xs:element ref="CalendarRequestDetail" />
            </xs:choice>
        </xs:sequence>
        <xs:attribute name="InfoRequestType" type="infoRequestType" use="required" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RequestNumber pn:RequestNumber (1) (1)
RequestingParty pn:RequestingParty (1) (1)
RespondToParty pn:RespondToParty (1) unbounded
SenderParty pn:SenderParty 0 (1)
ReceiverParty pn:ReceiverParty 0 unbounded
InventoryStatusRequestDetail pn:InventoryStatusRequestDetail (1) (1)
OrderStatusRequestDetail pn:OrderStatusRequestDetail (1) (1)
AvailabilityStatusRequestDetail pn:AvailabilityStatusRequestDetail (1) (1)
PlanningRequestDetail pn:PlanningRequestDetail (1) (1)
ProductQualityRequestDetail pn:ProductQualityRequestDetail (1) (1)
ShippingInstructionsRequestDetail pn:ShippingInstructionsRequestDetail (1) (1)
ShipmentStatusRequestDetail pn:ShipmentStatusRequestDetail (1) (1)
StatementRequestDetail pn:StatementRequestDetail (1) (1)
CalendarRequestDetail pn:CalendarRequestDetail (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
InfoRequestType pn:InfoRequestType Required
Language pn:Language eng (Optional)
