Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: InventoryChangeHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: InventoryChangeV2R40.xsd
Abstract

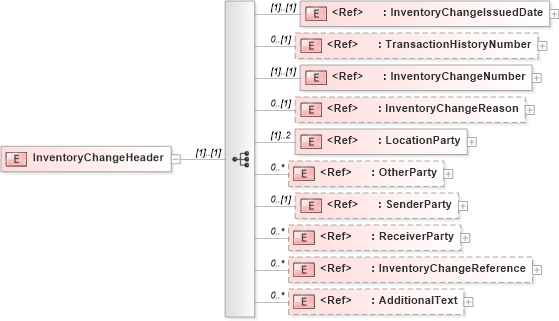

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into InventoryChangeReference in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into LocationParty in schema papinetcommondefsv2r40_xsd Drilldown into InventoryChangeReason in schema papinetcommondefsv2r40_xsd Drilldown into InventoryChangeNumber in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into InventoryChangeIssuedDate in schema papinetcommondefsv2r40_xsdXSD Diagram of InventoryChangeHeader in schema inventorychangev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="InventoryChangeHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="InventoryChangeIssuedDate" />
            <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
            <xs:element ref="InventoryChangeNumber" />
            <xs:element ref="InventoryChangeReason" minOccurs="0" />
            <xs:element ref="LocationParty" maxOccurs="2" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="SenderParty" minOccurs="0" />
            <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="InventoryChangeReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InventoryChangeIssuedDate pn:InventoryChangeIssuedDate (1) (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
InventoryChangeNumber pn:InventoryChangeNumber (1) (1)
InventoryChangeReason pn:InventoryChangeReason 0 (1)
LocationParty pn:LocationParty (1) 2
OtherParty pn:OtherParty 0 unbounded
SenderParty pn:SenderParty 0 (1)
ReceiverParty pn:ReceiverParty 0 unbounded
InventoryChangeReference pn:InventoryChangeReference 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
