Definition Type: Element
Name: JewelBox
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

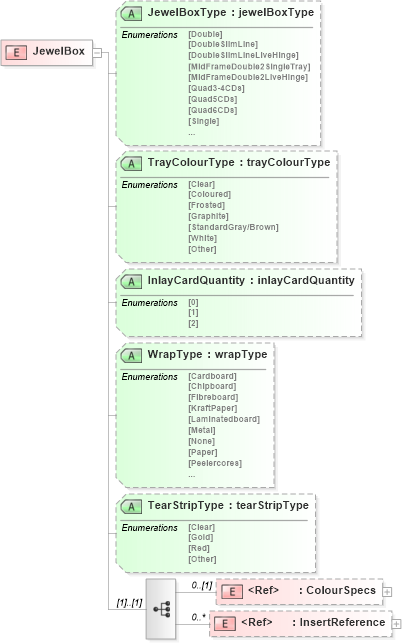

Collapse XSD Schema Diagram:
Drilldown into InsertReference in schema papinetcommondefsv2r40_xsd Drilldown into ColourSpecs in schema papinetcommondefsv2r40_xsd Drilldown into TearStripType in schema papinetcommondefsv2r40_xsd Drilldown into WrapType in schema papinetcommondefsv2r40_xsd Drilldown into InlayCardQuantity in schema papinetcommondefsv2r40_xsd Drilldown into TrayColourType in schema papinetcommondefsv2r40_xsd Drilldown into JewelBoxType in schema papinetcommondefsv2r40_xsdXSD Diagram of JewelBox in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="JewelBox">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ColourSpecs" minOccurs="0" />
            <xs:element ref="InsertReference" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="JewelBoxType" type="jewelBoxType" />
        <xs:attribute name="TrayColourType" type="trayColourType" />
        <xs:attribute name="InlayCardQuantity" type="inlayCardQuantity" />
        <xs:attribute name="WrapType" type="wrapType" />
        <xs:attribute name="TearStripType" type="tearStripType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ColourSpecs pn:ColourSpecs 0 (1)
InsertReference pn:InsertReference 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
JewelBoxType pn:JewelBoxType (Optional)
TrayColourType pn:TrayColourType (Optional)
InlayCardQuantity pn:InlayCardQuantity (Optional)
WrapType pn:WrapType (Optional)
TearStripType pn:TearStripType (Optional)
