Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: LoadAvailableInformation
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

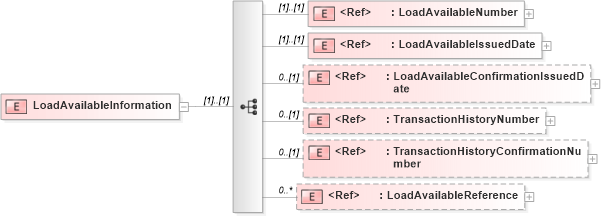

Collapse XSD Schema Diagram:
Drilldown into LoadAvailableReference in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryConfirmationNumber in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into LoadAvailableConfirmationIssuedDate in schema papinetcommondefsv2r40_xsd Drilldown into LoadAvailableIssuedDate in schema papinetcommondefsv2r40_xsd Drilldown into LoadAvailableNumber in schema papinetcommondefsv2r40_xsdXSD Diagram of LoadAvailableInformation in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="LoadAvailableInformation">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="LoadAvailableNumber" />
            <xs:element ref="LoadAvailableIssuedDate" />
            <xs:element ref="LoadAvailableConfirmationIssuedDate" minOccurs="0" />
            <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
            <xs:element ref="TransactionHistoryConfirmationNumber" minOccurs="0" />
            <xs:element ref="LoadAvailableReference" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoadAvailableNumber pn:LoadAvailableNumber (1) (1)
LoadAvailableIssuedDate pn:LoadAvailableIssuedDate (1) (1)
LoadAvailableConfirmationIssuedDate pn:LoadAvailableConfirmationIssuedDate 0 (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
TransactionHistoryConfirmationNumber pn:TransactionHistoryConfirmationNumber 0 (1)
LoadAvailableReference pn:LoadAvailableReference 0 unbounded
