Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: LoadTenderHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: LoadTenderV2R40.xsd
Abstract

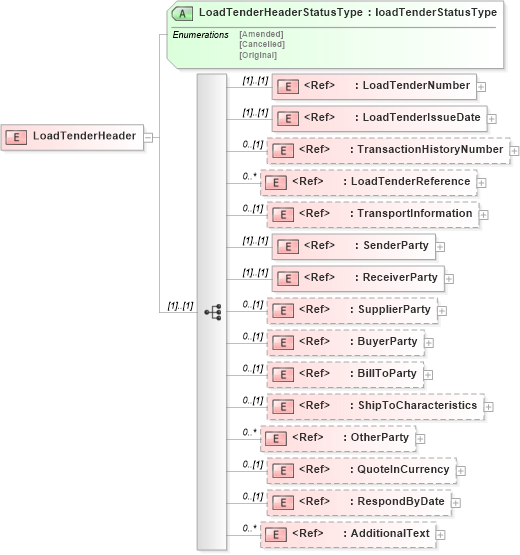

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into RespondByDate in schema papinetcommondefsv2r40_xsd Drilldown into QuoteInCurrency in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into ShipToCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into TransportInformation in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderReference in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderIssueDate in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderNumber in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderHeaderStatusType in schema loadtenderv2r40_xsdXSD Diagram of LoadTenderHeader in schema loadtenderv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="LoadTenderHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="LoadTenderNumber" />
            <xs:element ref="LoadTenderIssueDate" />
            <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
            <xs:element ref="LoadTenderReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TransportInformation" minOccurs="0" />
            <xs:element ref="SenderParty" />
            <xs:element ref="ReceiverParty" />
            <xs:element ref="SupplierParty" minOccurs="0" />
            <xs:element ref="BuyerParty" minOccurs="0" />
            <xs:element ref="BillToParty" minOccurs="0" />
            <xs:element ref="ShipToCharacteristics" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="QuoteInCurrency" minOccurs="0" />
            <xs:element ref="RespondByDate" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="LoadTenderHeaderStatusType" type="loadTenderStatusType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoadTenderNumber pn:LoadTenderNumber (1) (1)
LoadTenderIssueDate pn:LoadTenderIssueDate (1) (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
LoadTenderReference pn:LoadTenderReference 0 unbounded
TransportInformation pn:TransportInformation 0 (1)
SenderParty pn:SenderParty (1) (1)
ReceiverParty pn:ReceiverParty (1) (1)
SupplierParty pn:SupplierParty 0 (1)
BuyerParty pn:BuyerParty 0 (1)
BillToParty pn:BillToParty 0 (1)
ShipToCharacteristics pn:ShipToCharacteristics 0 (1)
OtherParty pn:OtherParty 0 unbounded
QuoteInCurrency pn:QuoteInCurrency 0 (1)
RespondByDate pn:RespondByDate 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
LoadTenderHeaderStatusType pn:LoadTenderHeaderStatusType Required
