Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: LoadTenderResponseHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: LoadTenderResponseV2R40.xsd
Abstract

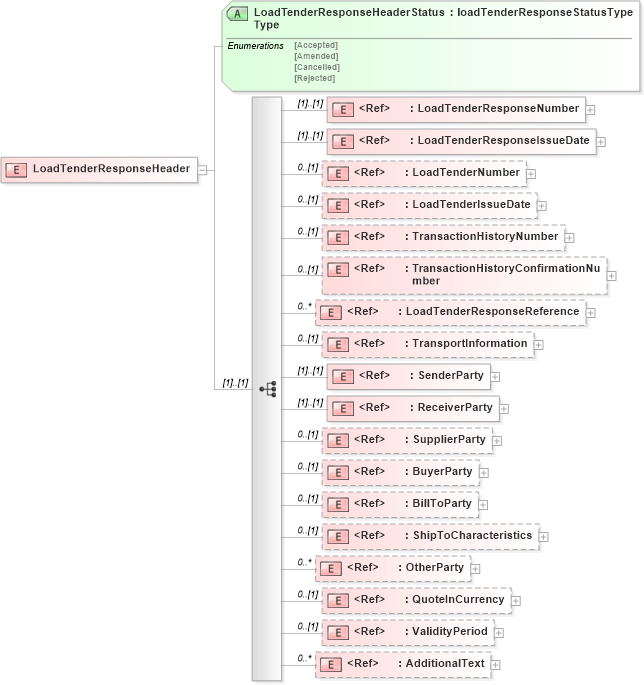

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into ValidityPeriod in schema papinetcommondefsv2r40_xsd Drilldown into QuoteInCurrency in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into ShipToCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into TransportInformation in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderResponseReference in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryConfirmationNumber in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderIssueDate in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderNumber in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderResponseIssueDate in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderResponseNumber in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderResponseHeaderStatusType in schema loadtenderresponsev2r40_xsdXSD Diagram of LoadTenderResponseHeader in schema loadtenderresponsev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="LoadTenderResponseHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="LoadTenderResponseNumber" />
            <xs:element ref="LoadTenderResponseIssueDate" />
            <xs:element ref="LoadTenderNumber" minOccurs="0" />
            <xs:element ref="LoadTenderIssueDate" minOccurs="0" />
            <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
            <xs:element ref="TransactionHistoryConfirmationNumber" minOccurs="0" />
            <xs:element ref="LoadTenderResponseReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TransportInformation" minOccurs="0" />
            <xs:element ref="SenderParty" />
            <xs:element ref="ReceiverParty" />
            <xs:element ref="SupplierParty" minOccurs="0" />
            <xs:element ref="BuyerParty" minOccurs="0" />
            <xs:element ref="BillToParty" minOccurs="0" />
            <xs:element ref="ShipToCharacteristics" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="QuoteInCurrency" minOccurs="0" />
            <xs:element ref="ValidityPeriod" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="LoadTenderResponseHeaderStatusType" type="loadTenderResponseStatusType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoadTenderResponseNumber pn:LoadTenderResponseNumber (1) (1)
LoadTenderResponseIssueDate pn:LoadTenderResponseIssueDate (1) (1)
LoadTenderNumber pn:LoadTenderNumber 0 (1)
LoadTenderIssueDate pn:LoadTenderIssueDate 0 (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
TransactionHistoryConfirmationNumber pn:TransactionHistoryConfirmationNumber 0 (1)
LoadTenderResponseReference pn:LoadTenderResponseReference 0 unbounded
TransportInformation pn:TransportInformation 0 (1)
SenderParty pn:SenderParty (1) (1)
ReceiverParty pn:ReceiverParty (1) (1)
SupplierParty pn:SupplierParty 0 (1)
BuyerParty pn:BuyerParty 0 (1)
BillToParty pn:BillToParty 0 (1)
ShipToCharacteristics pn:ShipToCharacteristics 0 (1)
OtherParty pn:OtherParty 0 unbounded
QuoteInCurrency pn:QuoteInCurrency 0 (1)
ValidityPeriod pn:ValidityPeriod 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
LoadTenderResponseHeaderStatusType pn:LoadTenderResponseHeaderStatusType Required
