Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: LoadTenderResponseSummary
Namespace: http://www.papinet.org/v2r40
Containing Schema: LoadTenderResponseV2R40.xsd
Abstract

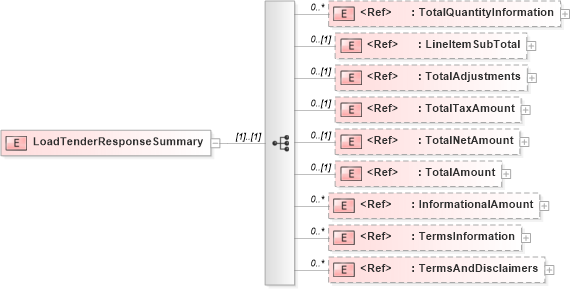

Collapse XSD Schema Diagram:
Drilldown into TermsAndDisclaimers in schema papinetcommondefsv2r40_xsd Drilldown into TermsInformation in schema papinetcommondefsv2r40_xsd Drilldown into InformationalAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalNetAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalTaxAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalAdjustments in schema papinetcommondefsv2r40_xsd Drilldown into LineItemSubTotal in schema papinetcommondefsv2r40_xsd Drilldown into TotalQuantityInformation in schema papinetcommondefsv2r40_xsdXSD Diagram of LoadTenderResponseSummary in schema loadtenderresponsev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="LoadTenderResponseSummary">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="TotalQuantityInformation" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="LineItemSubTotal" minOccurs="0" />
            <xs:element ref="TotalAdjustments" minOccurs="0" />
            <xs:element ref="TotalTaxAmount" minOccurs="0" />
            <xs:element ref="TotalNetAmount" minOccurs="0" />
            <xs:element ref="TotalAmount" minOccurs="0" />
            <xs:element ref="InformationalAmount" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TermsInformation" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TermsAndDisclaimers" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TotalQuantityInformation pn:TotalQuantityInformation 0 unbounded
LineItemSubTotal pn:LineItemSubTotal 0 (1)
TotalAdjustments pn:TotalAdjustments 0 (1)
TotalTaxAmount pn:TotalTaxAmount 0 (1)
TotalNetAmount pn:TotalNetAmount 0 (1)
TotalAmount pn:TotalAmount 0 (1)
InformationalAmount pn:InformationalAmount 0 unbounded
TermsInformation pn:TermsInformation 0 unbounded
TermsAndDisclaimers pn:TermsAndDisclaimers 0 unbounded
