Definition Type: Element
Name: MonetaryAdjustment
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

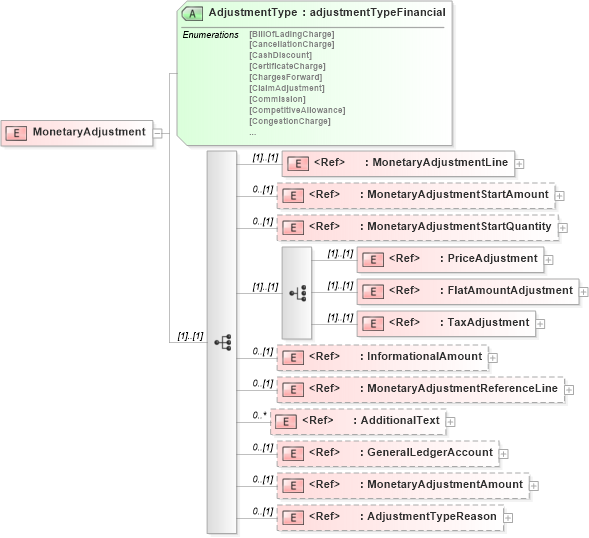

Collapse XSD Schema Diagram:
Drilldown into AdjustmentTypeReason in schema papinetcommondefsv2r40_xsd Drilldown into MonetaryAdjustmentAmount in schema papinetcommondefsv2r40_xsd Drilldown into GeneralLedgerAccount in schema papinetcommondefsv2r40_xsd Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into MonetaryAdjustmentReferenceLine in schema papinetcommondefsv2r40_xsd Drilldown into InformationalAmount in schema papinetcommondefsv2r40_xsd Drilldown into TaxAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into FlatAmountAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into PriceAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into MonetaryAdjustmentStartQuantity in schema papinetcommondefsv2r40_xsd Drilldown into MonetaryAdjustmentStartAmount in schema papinetcommondefsv2r40_xsd Drilldown into MonetaryAdjustmentLine in schema papinetcommondefsv2r40_xsd Drilldown into AdjustmentType in schema papinetcommondefsv2r40_xsdXSD Diagram of MonetaryAdjustment in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="MonetaryAdjustment">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="MonetaryAdjustmentLine" />
            <xs:element ref="MonetaryAdjustmentStartAmount" minOccurs="0" />
            <xs:element ref="MonetaryAdjustmentStartQuantity" minOccurs="0" />
            <xs:choice>
                <xs:element ref="PriceAdjustment" />
                <xs:element ref="FlatAmountAdjustment" />
                <xs:element ref="TaxAdjustment" />
            </xs:choice>
            <xs:element ref="InformationalAmount" minOccurs="0" />
            <xs:element ref="MonetaryAdjustmentReferenceLine" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="GeneralLedgerAccount" minOccurs="0" />
            <xs:element ref="MonetaryAdjustmentAmount" minOccurs="0" />
            <xs:element ref="AdjustmentTypeReason" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="AdjustmentType" type="adjustmentTypeFinancial" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MonetaryAdjustmentLine pn:MonetaryAdjustmentLine (1) (1)
MonetaryAdjustmentStartAmount pn:MonetaryAdjustmentStartAmount 0 (1)
MonetaryAdjustmentStartQuantity pn:MonetaryAdjustmentStartQuantity 0 (1)
PriceAdjustment pn:PriceAdjustment (1) (1)
FlatAmountAdjustment pn:FlatAmountAdjustment (1) (1)
TaxAdjustment pn:TaxAdjustment (1) (1)
InformationalAmount pn:InformationalAmount 0 (1)
MonetaryAdjustmentReferenceLine pn:MonetaryAdjustmentReferenceLine 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
GeneralLedgerAccount pn:GeneralLedgerAccount 0 (1)
MonetaryAdjustmentAmount pn:MonetaryAdjustmentAmount 0 (1)
AdjustmentTypeReason pn:AdjustmentTypeReason 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
AdjustmentType pn:AdjustmentType Required
