Definition Type: Element
Name: OrderConfirmationWoodHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: OrderConfirmationWoodV2R40.xsd
Abstract

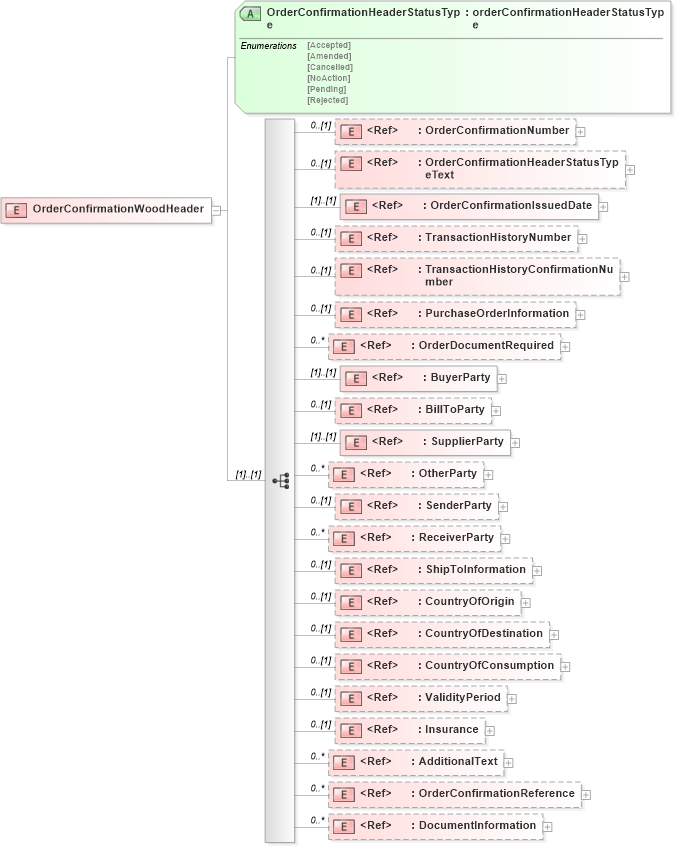

Collapse XSD Schema Diagram:
Drilldown into DocumentInformation in schema papinetcommondefsv2r40_xsd Drilldown into OrderConfirmationReference in schema papinetcommondefsv2r40_xsd Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into Insurance in schema papinetcommondefsv2r40_xsd Drilldown into ValidityPeriod in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfConsumption in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfDestination in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfOrigin in schema papinetcommondefsv2r40_xsd Drilldown into ShipToInformation in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into OrderDocumentRequired in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderInformation in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryConfirmationNumber in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into OrderConfirmationIssuedDate in schema papinetcommondefsv2r40_xsd Drilldown into OrderConfirmationHeaderStatusTypeText in schema papinetcommondefsv2r40_xsd Drilldown into OrderConfirmationNumber in schema papinetcommondefsv2r40_xsd Drilldown into OrderConfirmationHeaderStatusType in schema orderconfirmationwoodv2r40_xsdXSD Diagram of OrderConfirmationWoodHeader in schema orderconfirmationwoodv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="OrderConfirmationWoodHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="OrderConfirmationNumber" minOccurs="0" />
            <xs:element ref="OrderConfirmationHeaderStatusTypeText" minOccurs="0" />
            <xs:element ref="OrderConfirmationIssuedDate" />
            <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
            <xs:element ref="TransactionHistoryConfirmationNumber" minOccurs="0" />
            <xs:element ref="PurchaseOrderInformation" minOccurs="0" />
            <xs:element ref="OrderDocumentRequired" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="BuyerParty" />
            <xs:element ref="BillToParty" minOccurs="0" />
            <xs:element ref="SupplierParty" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="SenderParty" minOccurs="0" />
            <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="ShipToInformation" minOccurs="0" />
            <xs:element ref="CountryOfOrigin" minOccurs="0" />
            <xs:element ref="CountryOfDestination" minOccurs="0" />
            <xs:element ref="CountryOfConsumption" minOccurs="0" />
            <xs:element ref="ValidityPeriod" minOccurs="0" />
            <xs:element ref="Insurance" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="OrderConfirmationReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="DocumentInformation" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="OrderConfirmationHeaderStatusType" type="orderConfirmationHeaderStatusType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrderConfirmationNumber pn:OrderConfirmationNumber 0 (1)
OrderConfirmationHeaderStatusTypeText pn:OrderConfirmationHeaderStatusTypeText 0 (1)
OrderConfirmationIssuedDate pn:OrderConfirmationIssuedDate (1) (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
TransactionHistoryConfirmationNumber pn:TransactionHistoryConfirmationNumber 0 (1)
PurchaseOrderInformation pn:PurchaseOrderInformation 0 (1)
OrderDocumentRequired pn:OrderDocumentRequired 0 unbounded
BuyerParty pn:BuyerParty (1) (1)
BillToParty pn:BillToParty 0 (1)
SupplierParty pn:SupplierParty (1) (1)
OtherParty pn:OtherParty 0 unbounded
SenderParty pn:SenderParty 0 (1)
ReceiverParty pn:ReceiverParty 0 unbounded
ShipToInformation pn:ShipToInformation 0 (1)
CountryOfOrigin pn:CountryOfOrigin 0 (1)
CountryOfDestination pn:CountryOfDestination 0 (1)
CountryOfConsumption pn:CountryOfConsumption 0 (1)
ValidityPeriod pn:ValidityPeriod 0 (1)
Insurance pn:Insurance 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
OrderConfirmationReference pn:OrderConfirmationReference 0 unbounded
DocumentInformation pn:DocumentInformation 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
OrderConfirmationHeaderStatusType pn:OrderConfirmationHeaderStatusType Required
