Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: OrganisationUnit
Namespace: http://www.papinet.org/v2r40
Type: pn:organisationUnit
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

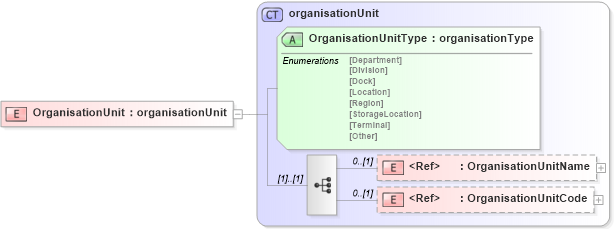

Collapse XSD Schema Diagram:
Drilldown into OrganisationUnitCode in schema papinetcommondefsv2r40_xsd Drilldown into OrganisationUnitName in schema papinetcommondefsv2r40_xsd Drilldown into OrganisationUnitType in schema papinetcommondefsv2r40_xsd Drilldown into organisationUnit in schema papinetcommondefsv2r40_xsdXSD Diagram of OrganisationUnit in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="OrganisationUnit" type="organisationUnit" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganisationUnitName pn:OrganisationUnitName 0 (1)
OrganisationUnitCode pn:OrganisationUnitCode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
OrganisationUnitType pn:OrganisationUnitType Required
Collapse Derivation Tree:
