Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: PackagingInformation
Namespace: http://www.papinet.org/v2r40
Type: pn:productPackagingClass
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

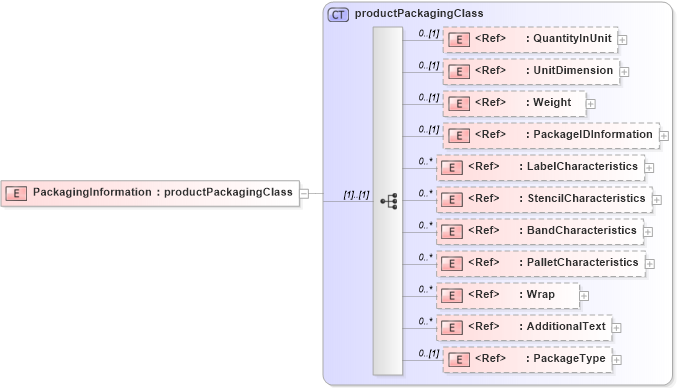

Collapse XSD Schema Diagram:
Drilldown into PackageType in schema papinetcommondefsv2r40_xsd Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into Wrap in schema papinetcommondefsv2r40_xsd Drilldown into PalletCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into BandCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LabelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into PackageIDInformation in schema papinetcommondefsv2r40_xsd Drilldown into Weight in schema papinetcommondefsv2r40_xsd Drilldown into UnitDimension in schema papinetcommondefsv2r40_xsd Drilldown into QuantityInUnit in schema papinetcommondefsv2r40_xsd Drilldown into productPackagingClass in schema papinetcommondefsv2r40_xsdXSD Diagram of PackagingInformation in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PackagingInformation" type="productPackagingClass" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QuantityInUnit pn:QuantityInUnit 0 (1)
UnitDimension pn:UnitDimension 0 (1)
Weight pn:Weight 0 (1)
PackageIDInformation pn:PackageIDInformation 0 (1)
LabelCharacteristics pn:LabelCharacteristics 0 unbounded
StencilCharacteristics pn:StencilCharacteristics 0 unbounded
BandCharacteristics pn:BandCharacteristics 0 unbounded
PalletCharacteristics pn:PalletCharacteristics 0 unbounded
Wrap pn:Wrap 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
PackageType pn:PackageType 0 (1)
Collapse Derivation Tree:
