Definition Type: Element
Name: PackingList
Namespace: http://www.papinet.org/v2r40
Containing Schema: PackingListV2R40.xsd
Abstract

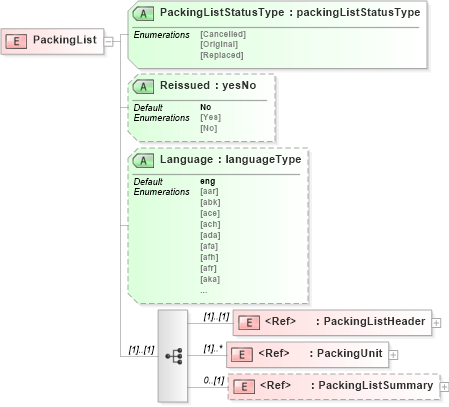

Collapse XSD Schema Diagram:
Drilldown into PackingListSummary in schema packinglistv2r40_xsd Drilldown into PackingUnit in schema papinetcommondefsv2r40_xsd Drilldown into PackingListHeader in schema packinglistv2r40_xsd Drilldown into Language in schema packinglistv2r40_xsd Drilldown into Reissued in schema packinglistv2r40_xsd Drilldown into PackingListStatusType in schema packinglistv2r40_xsdXSD Diagram of PackingList in schema packinglistv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PackingList">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PackingListHeader" />
            <xs:element ref="PackingUnit" maxOccurs="unbounded" />
            <xs:element ref="PackingListSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="PackingListStatusType" type="packingListStatusType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PackingListHeader pn:PackingListHeader (1) (1)
PackingUnit pn:PackingUnit (1) unbounded
PackingListSummary pn:PackingListSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
PackingListStatusType pn:PackingListStatusType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
