Definition Type: Element
Name: Perforation
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

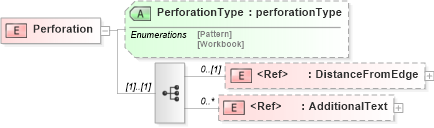

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into DistanceFromEdge in schema papinetcommondefsv2r40_xsd Drilldown into PerforationType in schema papinetcommondefsv2r40_xsdXSD Diagram of Perforation in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Perforation">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="DistanceFromEdge" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="PerforationType" type="perforationType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DistanceFromEdge pn:DistanceFromEdge 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
PerforationType pn:PerforationType (Optional)
