Definition Type: ComplexType
Name: plywoodSideClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

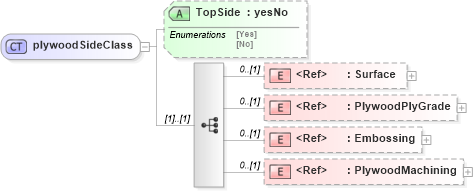

Collapse XSD Schema Diagram:
Drilldown into PlywoodMachining in schema papinetcommondefsv2r40_xsd Drilldown into Embossing in schema papinetcommondefsv2r40_xsd Drilldown into PlywoodPlyGrade in schema papinetcommondefsv2r40_xsd Drilldown into Surface in schema papinetcommondefsv2r40_xsd Drilldown into TopSide in schema papinetcommondefsv2r40_xsdXSD Diagram of plywoodSideClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="plywoodSideClass">
    <xs:sequence>
        <xs:element ref="Surface" minOccurs="0" />
        <xs:element ref="PlywoodPlyGrade" minOccurs="0" />
        <xs:element ref="Embossing" minOccurs="0" />
        <xs:element ref="PlywoodMachining" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="TopSide" type="yesNo" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Surface pn:Surface 0 (1)
PlywoodPlyGrade pn:PlywoodPlyGrade 0 (1)
Embossing pn:Embossing 0 (1)
PlywoodMachining pn:PlywoodMachining 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
TopSide pn:TopSide (Optional)
Collapse Derivation Tree:
Collapse References:
pn:Side
