Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: PrepInformation
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

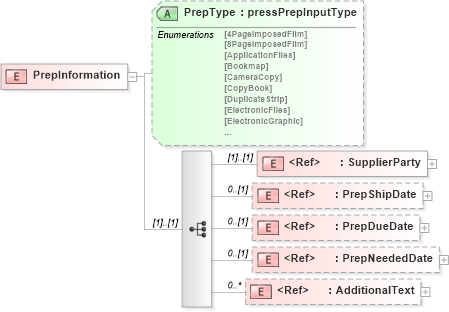

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into PrepNeededDate in schema papinetcommondefsv2r40_xsd Drilldown into PrepDueDate in schema papinetcommondefsv2r40_xsd Drilldown into PrepShipDate in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into PrepType in schema papinetcommondefsv2r40_xsdXSD Diagram of PrepInformation in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PrepInformation">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="SupplierParty" />
            <xs:element ref="PrepShipDate" minOccurs="0" />
            <xs:element ref="PrepDueDate" minOccurs="0" />
            <xs:element ref="PrepNeededDate" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="PrepType" type="pressPrepInputType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SupplierParty pn:SupplierParty (1) (1)
PrepShipDate pn:PrepShipDate 0 (1)
PrepDueDate pn:PrepDueDate 0 (1)
PrepNeededDate pn:PrepNeededDate 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
PrepType pn:PrepType (Optional)
