Definition Type: Element
Name: PressConditions
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

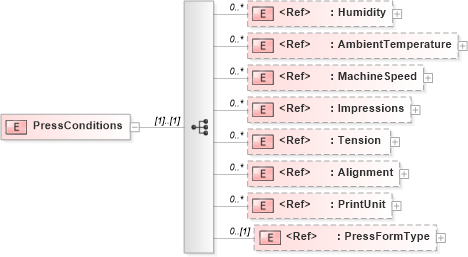

Collapse XSD Schema Diagram:
Drilldown into PressFormType in schema papinetcommondefsv2r40_xsd Drilldown into PrintUnit in schema papinetcommondefsv2r40_xsd Drilldown into Alignment in schema papinetcommondefsv2r40_xsd Drilldown into Tension in schema papinetcommondefsv2r40_xsd Drilldown into Impressions in schema papinetcommondefsv2r40_xsd Drilldown into MachineSpeed in schema papinetcommondefsv2r40_xsd Drilldown into AmbientTemperature in schema papinetcommondefsv2r40_xsd Drilldown into Humidity in schema papinetcommondefsv2r40_xsdXSD Diagram of PressConditions in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PressConditions">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Humidity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AmbientTemperature" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="MachineSpeed" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Impressions" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Tension" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Alignment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PrintUnit" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PressFormType" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Humidity pn:Humidity 0 unbounded
AmbientTemperature pn:AmbientTemperature 0 unbounded
MachineSpeed pn:MachineSpeed 0 unbounded
Impressions pn:Impressions 0 unbounded
Tension pn:Tension 0 unbounded
Alignment pn:Alignment 0 unbounded
PrintUnit pn:PrintUnit 0 unbounded
PressFormType pn:PressFormType 0 (1)
