Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: ProductPerformanceConcerns
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

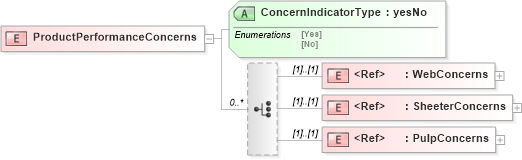

Collapse XSD Schema Diagram:
Drilldown into PulpConcerns in schema papinetcommondefsv2r40_xsd Drilldown into SheeterConcerns in schema papinetcommondefsv2r40_xsd Drilldown into WebConcerns in schema papinetcommondefsv2r40_xsd Drilldown into ConcernIndicatorType in schema papinetcommondefsv2r40_xsdXSD Diagram of ProductPerformanceConcerns in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ProductPerformanceConcerns">
    <xs:complexType>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="WebConcerns" />
            <xs:element ref="SheeterConcerns" />
            <xs:element ref="PulpConcerns" />
        </xs:choice>
        <xs:attribute name="ConcernIndicatorType" type="yesNo" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WebConcerns pn:WebConcerns (1) (1)
SheeterConcerns pn:SheeterConcerns (1) (1)
PulpConcerns pn:PulpConcerns (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ConcernIndicatorType pn:ConcernIndicatorType Required
