Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: PulpUnitCharacteristics
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

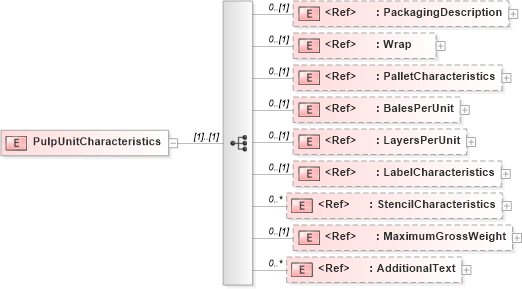

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into MaximumGrossWeight in schema papinetcommondefsv2r40_xsd Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LabelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LayersPerUnit in schema papinetcommondefsv2r40_xsd Drilldown into BalesPerUnit in schema papinetcommondefsv2r40_xsd Drilldown into PalletCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into Wrap in schema papinetcommondefsv2r40_xsd Drilldown into PackagingDescription in schema papinetcommondefsv2r40_xsdXSD Diagram of PulpUnitCharacteristics in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PulpUnitCharacteristics">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PackagingDescription" minOccurs="0" />
            <xs:element ref="Wrap" minOccurs="0" />
            <xs:element ref="PalletCharacteristics" minOccurs="0" />
            <xs:element ref="BalesPerUnit" minOccurs="0" />
            <xs:element ref="LayersPerUnit" minOccurs="0" />
            <xs:element ref="LabelCharacteristics" minOccurs="0" />
            <xs:element ref="StencilCharacteristics" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="MaximumGrossWeight" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PackagingDescription pn:PackagingDescription 0 (1)
Wrap pn:Wrap 0 (1)
PalletCharacteristics pn:PalletCharacteristics 0 (1)
BalesPerUnit pn:BalesPerUnit 0 (1)
LayersPerUnit pn:LayersPerUnit 0 (1)
LabelCharacteristics pn:LabelCharacteristics 0 (1)
StencilCharacteristics pn:StencilCharacteristics 0 unbounded
MaximumGrossWeight pn:MaximumGrossWeight 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
