Definition Type: Element
Name: PunchedHoleDetails
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

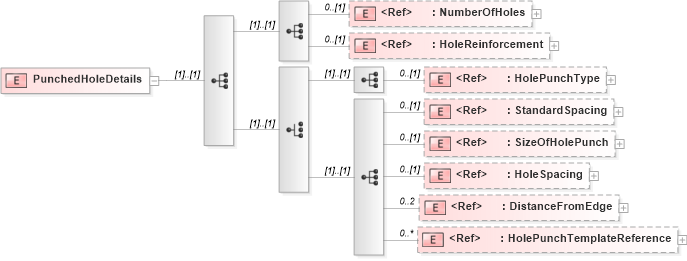

Collapse XSD Schema Diagram:
Drilldown into HolePunchTemplateReference in schema papinetcommondefsv2r40_xsd Drilldown into DistanceFromEdge in schema papinetcommondefsv2r40_xsd Drilldown into HoleSpacing in schema papinetcommondefsv2r40_xsd Drilldown into SizeOfHolePunch in schema papinetcommondefsv2r40_xsd Drilldown into StandardSpacing in schema papinetcommondefsv2r40_xsd Drilldown into HolePunchType in schema papinetcommondefsv2r40_xsd Drilldown into HoleReinforcement in schema papinetcommondefsv2r40_xsd Drilldown into NumberOfHoles in schema papinetcommondefsv2r40_xsdXSD Diagram of PunchedHoleDetails in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PunchedHoleDetails">
    <xs:complexType>
        <xs:sequence>
            <xs:sequence>
                <xs:element ref="NumberOfHoles" minOccurs="0" />
                <xs:element ref="HoleReinforcement" minOccurs="0" />
            </xs:sequence>
            <xs:choice>
                <xs:sequence>
                    <xs:element ref="HolePunchType" minOccurs="0" />
                </xs:sequence>
                <xs:sequence>
                    <xs:element ref="StandardSpacing" minOccurs="0" />
                    <xs:element ref="SizeOfHolePunch" minOccurs="0" />
                    <xs:element ref="HoleSpacing" minOccurs="0" />
                    <xs:element ref="DistanceFromEdge" minOccurs="0" maxOccurs="2" />
                    <xs:element ref="HolePunchTemplateReference" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:choice>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NumberOfHoles pn:NumberOfHoles 0 (1)
HoleReinforcement pn:HoleReinforcement 0 (1)
HolePunchType pn:HolePunchType 0 (1)
StandardSpacing pn:StandardSpacing 0 (1)
SizeOfHolePunch pn:SizeOfHolePunch 0 (1)
HoleSpacing pn:HoleSpacing 0 (1)
DistanceFromEdge pn:DistanceFromEdge 0 2
HolePunchTemplateReference pn:HolePunchTemplateReference 0 unbounded
