Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: ComplexType
Name: reelConversionCharacteristicsClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

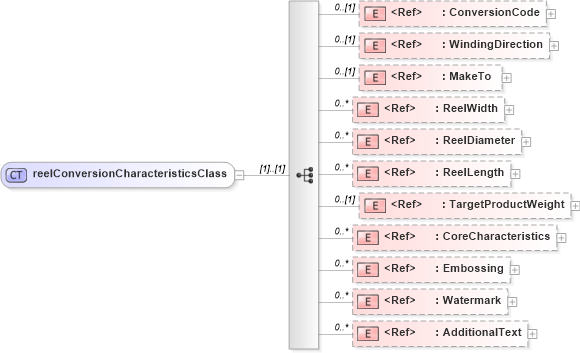

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into Watermark in schema papinetcommondefsv2r40_xsd Drilldown into Embossing in schema papinetcommondefsv2r40_xsd Drilldown into CoreCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TargetProductWeight in schema papinetcommondefsv2r40_xsd Drilldown into ReelLength in schema papinetcommondefsv2r40_xsd Drilldown into ReelDiameter in schema papinetcommondefsv2r40_xsd Drilldown into ReelWidth in schema papinetcommondefsv2r40_xsd Drilldown into MakeTo in schema papinetcommondefsv2r40_xsd Drilldown into WindingDirection in schema papinetcommondefsv2r40_xsd Drilldown into ConversionCode in schema papinetcommondefsv2r40_xsdXSD Diagram of reelConversionCharacteristicsClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="reelConversionCharacteristicsClass">
    <xs:sequence>
        <xs:element ref="ConversionCode" minOccurs="0" />
        <xs:element ref="WindingDirection" minOccurs="0" />
        <xs:element ref="MakeTo" minOccurs="0" />
        <xs:element ref="ReelWidth" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="ReelDiameter" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="ReelLength" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="TargetProductWeight" minOccurs="0" />
        <xs:element ref="CoreCharacteristics" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Embossing" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Watermark" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConversionCode pn:ConversionCode 0 (1)
WindingDirection pn:WindingDirection 0 (1)
MakeTo pn:MakeTo 0 (1)
ReelWidth pn:ReelWidth 0 unbounded
ReelDiameter pn:ReelDiameter 0 unbounded
ReelLength pn:ReelLength 0 unbounded
TargetProductWeight pn:TargetProductWeight 0 (1)
CoreCharacteristics pn:CoreCharacteristics 0 unbounded
Embossing pn:Embossing 0 unbounded
Watermark pn:Watermark 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
Collapse Derivation Tree:
Collapse References:
pn:ReelConversionCharacteristics
