Definition Type: Element
Name: ReelItem
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

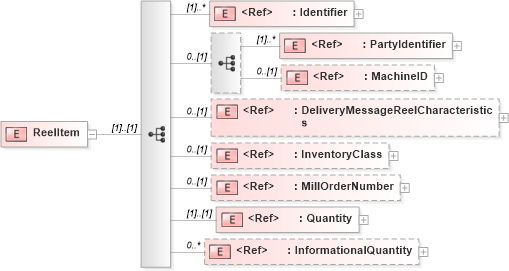

Collapse XSD Schema Diagram:
Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into MillOrderNumber in schema papinetcommondefsv2r40_xsd Drilldown into InventoryClass in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryMessageReelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into MachineID in schema papinetcommondefsv2r40_xsd Drilldown into PartyIdentifier in schema papinetcommondefsv2r40_xsd Drilldown into Identifier in schema papinetcommondefsv2r40_xsdXSD Diagram of ReelItem in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ReelItem">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Identifier" maxOccurs="unbounded" />
            <xs:sequence minOccurs="0">
                <xs:element ref="PartyIdentifier" maxOccurs="unbounded" />
                <xs:element ref="MachineID" minOccurs="0" />
            </xs:sequence>
            <xs:element ref="DeliveryMessageReelCharacteristics" minOccurs="0" />
            <xs:element ref="InventoryClass" minOccurs="0" />
            <xs:element ref="MillOrderNumber" minOccurs="0" />
            <xs:element ref="Quantity" />
            <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier pn:Identifier (1) unbounded
PartyIdentifier pn:PartyIdentifier (1) unbounded
MachineID pn:MachineID 0 (1)
DeliveryMessageReelCharacteristics pn:DeliveryMessageReelCharacteristics 0 (1)
InventoryClass pn:InventoryClass 0 (1)
MillOrderNumber pn:MillOrderNumber 0 (1)
Quantity pn:Quantity (1) (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
