Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: RFQ
Namespace: http://www.papinet.org/v2r40
Containing Schema: RFQV2R40.xsd
Abstract

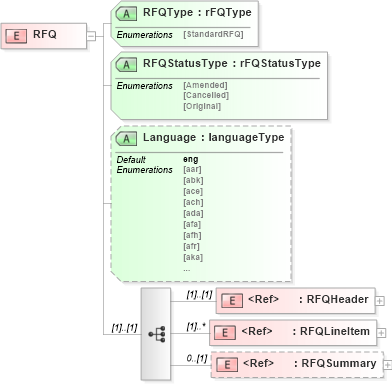

Collapse XSD Schema Diagram:
Drilldown into RFQSummary in schema rfqv2r40_xsd Drilldown into RFQLineItem in schema rfqv2r40_xsd Drilldown into RFQHeader in schema rfqv2r40_xsd Drilldown into Language in schema rfqv2r40_xsd Drilldown into RFQStatusType in schema rfqv2r40_xsd Drilldown into RFQType in schema rfqv2r40_xsdXSD Diagram of RFQ in schema rfqv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="RFQ">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="RFQHeader" />
            <xs:element ref="RFQLineItem" maxOccurs="unbounded" />
            <xs:element ref="RFQSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="RFQType" type="rFQType" use="required" />
        <xs:attribute name="RFQStatusType" type="rFQStatusType" use="required" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RFQHeader pn:RFQHeader (1) (1)
RFQLineItem pn:RFQLineItem (1) unbounded
RFQSummary pn:RFQSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
RFQType pn:RFQType Required
RFQStatusType pn:RFQStatusType Required
Language pn:Language eng (Optional)
