Definition Type: Element
Name: RouteLeg
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

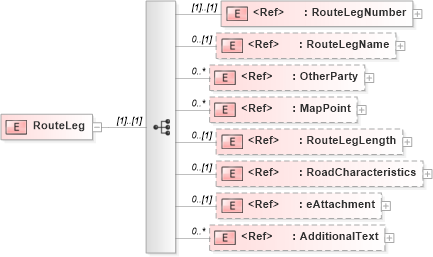

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into eAttachment in schema papinetcommondefsv2r40_xsd Drilldown into RoadCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into RouteLegLength in schema papinetcommondefsv2r40_xsd Drilldown into MapPoint in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into RouteLegName in schema papinetcommondefsv2r40_xsd Drilldown into RouteLegNumber in schema papinetcommondefsv2r40_xsdXSD Diagram of RouteLeg in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="RouteLeg">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="RouteLegNumber" />
            <xs:element ref="RouteLegName" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="MapPoint" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="RouteLegLength" minOccurs="0" />
            <xs:element ref="RoadCharacteristics" minOccurs="0" />
            <xs:element ref="eAttachment" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RouteLegNumber pn:RouteLegNumber (1) (1)
RouteLegName pn:RouteLegName 0 (1)
OtherParty pn:OtherParty 0 unbounded
MapPoint pn:MapPoint 0 unbounded
RouteLegLength pn:RouteLegLength 0 (1)
RoadCharacteristics pn:RoadCharacteristics 0 (1)
eAttachment pn:eAttachment 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
