Definition Type: ComplexType
Name: safetyAndEnvironmentalInformationClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

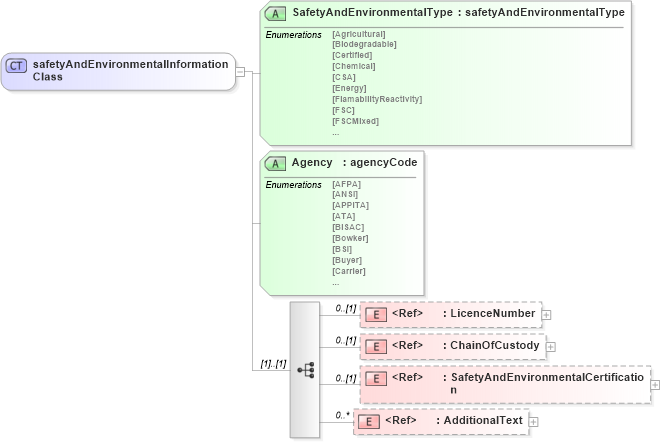

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into SafetyAndEnvironmentalCertification in schema papinetcommondefsv2r40_xsd Drilldown into ChainOfCustody in schema papinetcommondefsv2r40_xsd Drilldown into LicenceNumber in schema papinetcommondefsv2r40_xsd Drilldown into Agency in schema papinetcommondefsv2r40_xsd Drilldown into SafetyAndEnvironmentalType in schema papinetcommondefsv2r40_xsdXSD Diagram of safetyAndEnvironmentalInformationClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="safetyAndEnvironmentalInformationClass">
    <xs:sequence>
        <xs:element ref="LicenceNumber" minOccurs="0" />
        <xs:element ref="ChainOfCustody" minOccurs="0" />
        <xs:element ref="SafetyAndEnvironmentalCertification" minOccurs="0" />
        <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="SafetyAndEnvironmentalType" type="safetyAndEnvironmentalType" use="required" />
    <xs:attribute name="Agency" type="agencyCode" use="required" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LicenceNumber pn:LicenceNumber 0 (1)
ChainOfCustody pn:ChainOfCustody 0 (1)
SafetyAndEnvironmentalCertification pn:SafetyAndEnvironmentalCertification 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
SafetyAndEnvironmentalType pn:SafetyAndEnvironmentalType Required
Agency pn:Agency Required
Collapse Derivation Tree:
Collapse References:
pn:SafetyAndEnvironmentalInformation
