Definition Type: Element
Name: ScaleTicketLineItem
Namespace: http://www.papinet.org/v2r40
Containing Schema: ScaleTicketV2R40.xsd
Abstract

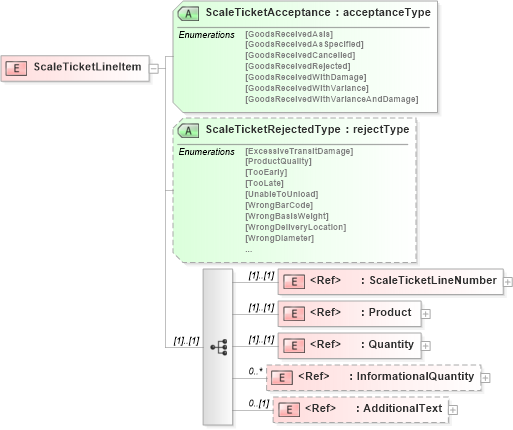

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into Product in schema papinetcommondefsv2r40_xsd Drilldown into ScaleTicketLineNumber in schema papinetcommondefsv2r40_xsd Drilldown into ScaleTicketRejectedType in schema scaleticketv2r40_xsd Drilldown into ScaleTicketAcceptance in schema scaleticketv2r40_xsdXSD Diagram of ScaleTicketLineItem in schema scaleticketv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ScaleTicketLineItem">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ScaleTicketLineNumber" />
            <xs:element ref="Product" />
            <xs:element ref="Quantity" />
            <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="ScaleTicketAcceptance" type="acceptanceType" use="required" />
        <xs:attribute name="ScaleTicketRejectedType" type="rejectType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScaleTicketLineNumber pn:ScaleTicketLineNumber (1) (1)
Product pn:Product (1) (1)
Quantity pn:Quantity (1) (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
AdditionalText pn:AdditionalText 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ScaleTicketAcceptance pn:ScaleTicketAcceptance Required
ScaleTicketRejectedType pn:ScaleTicketRejectedType (Optional)
