Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: ShipmentStatus
Namespace: http://www.papinet.org/v2r40
Containing Schema: ShipmentStatusV2R40.xsd
Abstract

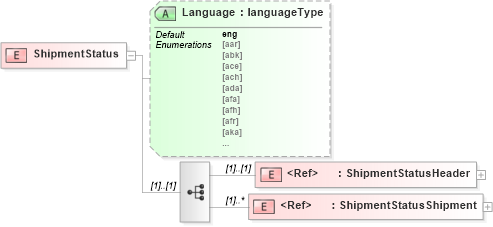

Collapse XSD Schema Diagram:
Drilldown into ShipmentStatusShipment in schema shipmentstatusv2r40_xsd Drilldown into ShipmentStatusHeader in schema shipmentstatusv2r40_xsd Drilldown into Language in schema shipmentstatusv2r40_xsdXSD Diagram of ShipmentStatus in schema shipmentstatusv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ShipmentStatus">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ShipmentStatusHeader" />
            <xs:element ref="ShipmentStatusShipment" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShipmentStatusHeader pn:ShipmentStatusHeader (1) (1)
ShipmentStatusShipment pn:ShipmentStatusShipment (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
Language pn:Language eng (Optional)
