Definition Type: ComplexType
Name: shippingInstructionsHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

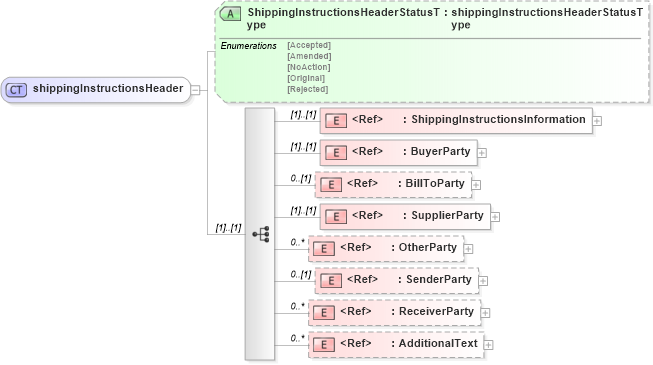

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into ShippingInstructionsInformation in schema papinetcommondefsv2r40_xsd Drilldown into ShippingInstructionsHeaderStatusType in schema papinetcommondefsv2r40_xsdXSD Diagram of shippingInstructionsHeader in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="shippingInstructionsHeader">
    <xs:sequence>
        <xs:element ref="ShippingInstructionsInformation" />
        <xs:element ref="BuyerParty" />
        <xs:element ref="BillToParty" minOccurs="0" />
        <xs:element ref="SupplierParty" />
        <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="SenderParty" minOccurs="0" />
        <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="ShippingInstructionsHeaderStatusType" type="shippingInstructionsHeaderStatusType" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShippingInstructionsInformation pn:ShippingInstructionsInformation (1) (1)
BuyerParty pn:BuyerParty (1) (1)
BillToParty pn:BillToParty 0 (1)
SupplierParty pn:SupplierParty (1) (1)
OtherParty pn:OtherParty 0 unbounded
SenderParty pn:SenderParty 0 (1)
ReceiverParty pn:ReceiverParty 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ShippingInstructionsHeaderStatusType pn:ShippingInstructionsHeaderStatusType (Optional)
Collapse Derivation Tree:
Collapse References:
pn:ShippingInstructionsHeader
