Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: TermsOfDelivery
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

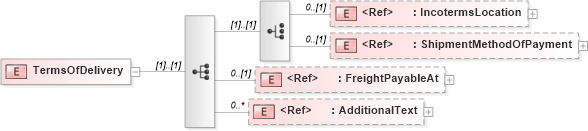

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into FreightPayableAt in schema papinetcommondefsv2r40_xsd Drilldown into ShipmentMethodOfPayment in schema papinetcommondefsv2r40_xsd Drilldown into IncotermsLocation in schema papinetcommondefsv2r40_xsdXSD Diagram of TermsOfDelivery in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="TermsOfDelivery">
    <xs:complexType>
        <xs:sequence>
            <xs:choice>
                <xs:element ref="IncotermsLocation" minOccurs="0" />
                <xs:element ref="ShipmentMethodOfPayment" minOccurs="0" />
            </xs:choice>
            <xs:element ref="FreightPayableAt" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IncotermsLocation pn:IncotermsLocation 0 (1)
ShipmentMethodOfPayment pn:ShipmentMethodOfPayment 0 (1)
FreightPayableAt pn:FreightPayableAt 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
