Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: TermsOfPayment
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

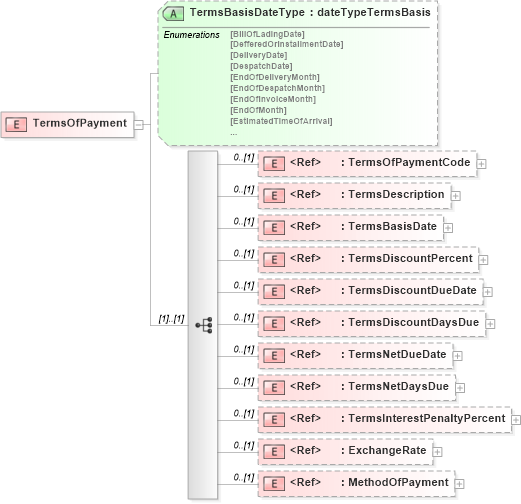

Collapse XSD Schema Diagram:
Drilldown into MethodOfPayment in schema papinetcommondefsv2r40_xsd Drilldown into ExchangeRate in schema papinetcommondefsv2r40_xsd Drilldown into TermsInterestPenaltyPercent in schema papinetcommondefsv2r40_xsd Drilldown into TermsNetDaysDue in schema papinetcommondefsv2r40_xsd Drilldown into TermsNetDueDate in schema papinetcommondefsv2r40_xsd Drilldown into TermsDiscountDaysDue in schema papinetcommondefsv2r40_xsd Drilldown into TermsDiscountDueDate in schema papinetcommondefsv2r40_xsd Drilldown into TermsDiscountPercent in schema papinetcommondefsv2r40_xsd Drilldown into TermsBasisDate in schema papinetcommondefsv2r40_xsd Drilldown into TermsDescription in schema papinetcommondefsv2r40_xsd Drilldown into TermsOfPaymentCode in schema papinetcommondefsv2r40_xsd Drilldown into TermsBasisDateType in schema papinetcommondefsv2r40_xsdXSD Diagram of TermsOfPayment in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="TermsOfPayment">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="TermsOfPaymentCode" minOccurs="0" />
            <xs:element ref="TermsDescription" minOccurs="0" />
            <xs:element ref="TermsBasisDate" minOccurs="0" />
            <xs:element ref="TermsDiscountPercent" minOccurs="0" />
            <xs:element ref="TermsDiscountDueDate" minOccurs="0" />
            <xs:element ref="TermsDiscountDaysDue" minOccurs="0" />
            <xs:element ref="TermsNetDueDate" minOccurs="0" />
            <xs:element ref="TermsNetDaysDue" minOccurs="0" />
            <xs:element ref="TermsInterestPenaltyPercent" minOccurs="0" />
            <xs:element ref="ExchangeRate" minOccurs="0" />
            <xs:element ref="MethodOfPayment" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="TermsBasisDateType" type="dateTypeTermsBasis" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TermsOfPaymentCode pn:TermsOfPaymentCode 0 (1)
TermsDescription pn:TermsDescription 0 (1)
TermsBasisDate pn:TermsBasisDate 0 (1)
TermsDiscountPercent pn:TermsDiscountPercent 0 (1)
TermsDiscountDueDate pn:TermsDiscountDueDate 0 (1)
TermsDiscountDaysDue pn:TermsDiscountDaysDue 0 (1)
TermsNetDueDate pn:TermsNetDueDate 0 (1)
TermsNetDaysDue pn:TermsNetDaysDue 0 (1)
TermsInterestPenaltyPercent pn:TermsInterestPenaltyPercent 0 (1)
ExchangeRate pn:ExchangeRate 0 (1)
MethodOfPayment pn:MethodOfPayment 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
TermsBasisDateType pn:TermsBasisDateType (Optional)
