Definition Type: Element
Name: TotalNetOfTermsDiscount
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

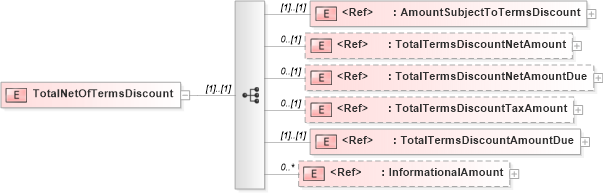

Collapse XSD Schema Diagram:
Drilldown into InformationalAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalTermsDiscountAmountDue in schema papinetcommondefsv2r40_xsd Drilldown into TotalTermsDiscountTaxAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalTermsDiscountNetAmountDue in schema papinetcommondefsv2r40_xsd Drilldown into TotalTermsDiscountNetAmount in schema papinetcommondefsv2r40_xsd Drilldown into AmountSubjectToTermsDiscount in schema papinetcommondefsv2r40_xsdXSD Diagram of TotalNetOfTermsDiscount in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="TotalNetOfTermsDiscount">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="AmountSubjectToTermsDiscount" />
            <xs:element ref="TotalTermsDiscountNetAmount" minOccurs="0" />
            <xs:element ref="TotalTermsDiscountNetAmountDue" minOccurs="0" />
            <xs:element ref="TotalTermsDiscountTaxAmount" minOccurs="0" />
            <xs:element ref="TotalTermsDiscountAmountDue" />
            <xs:element ref="InformationalAmount" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AmountSubjectToTermsDiscount pn:AmountSubjectToTermsDiscount (1) (1)
TotalTermsDiscountNetAmount pn:TotalTermsDiscountNetAmount 0 (1)
TotalTermsDiscountNetAmountDue pn:TotalTermsDiscountNetAmountDue 0 (1)
TotalTermsDiscountTaxAmount pn:TotalTermsDiscountTaxAmount 0 (1)
TotalTermsDiscountAmountDue pn:TotalTermsDiscountAmountDue (1) (1)
InformationalAmount pn:InformationalAmount 0 unbounded
