Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: TransportModeCharacteristics
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

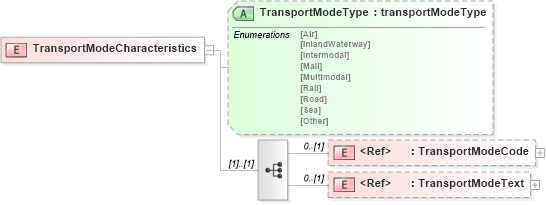

Collapse XSD Schema Diagram:
Drilldown into TransportModeText in schema papinetcommondefsv2r40_xsd Drilldown into TransportModeCode in schema papinetcommondefsv2r40_xsd Drilldown into TransportModeType in schema papinetcommondefsv2r40_xsdXSD Diagram of TransportModeCharacteristics in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="TransportModeCharacteristics">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="TransportModeCode" minOccurs="0" />
            <xs:element ref="TransportModeText" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="TransportModeType" type="transportModeType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportModeCode pn:TransportModeCode 0 (1)
TransportModeText pn:TransportModeText 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
TransportModeType pn:TransportModeType (Optional)
