Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: Usage
Namespace: http://www.papinet.org/v2r40
Containing Schema: UsageV2R40.xsd
Abstract

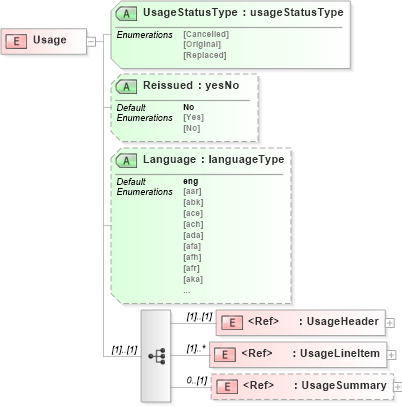

Collapse XSD Schema Diagram:
Drilldown into UsageSummary in schema usagev2r40_xsd Drilldown into UsageLineItem in schema usagev2r40_xsd Drilldown into UsageHeader in schema usagev2r40_xsd Drilldown into Language in schema usagev2r40_xsd Drilldown into Reissued in schema usagev2r40_xsd Drilldown into UsageStatusType in schema usagev2r40_xsdXSD Diagram of Usage in schema usagev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Usage">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="UsageHeader" />
            <xs:element ref="UsageLineItem" maxOccurs="unbounded" />
            <xs:element ref="UsageSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="UsageStatusType" type="usageStatusType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UsageHeader pn:UsageHeader (1) (1)
UsageLineItem pn:UsageLineItem (1) unbounded
UsageSummary pn:UsageSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
UsageStatusType pn:UsageStatusType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
