Definition Type: Element
Name: UsageLineItemDetail
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

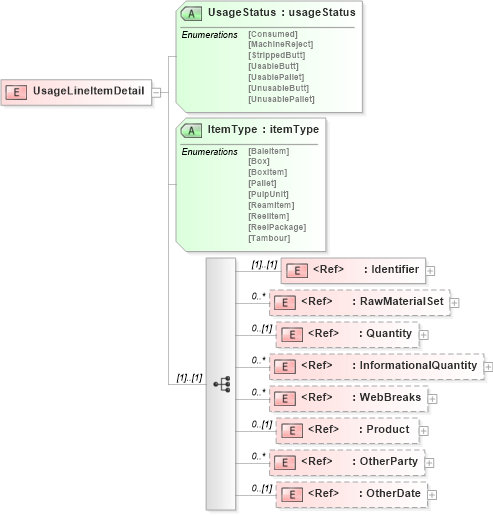

Collapse XSD Schema Diagram:
Drilldown into OtherDate in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into Product in schema papinetcommondefsv2r40_xsd Drilldown into WebBreaks in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into RawMaterialSet in schema papinetcommondefsv2r40_xsd Drilldown into Identifier in schema papinetcommondefsv2r40_xsd Drilldown into ItemType in schema papinetcommondefsv2r40_xsd Drilldown into UsageStatus in schema papinetcommondefsv2r40_xsdXSD Diagram of UsageLineItemDetail in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="UsageLineItemDetail">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Identifier" />
            <xs:element ref="RawMaterialSet" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Quantity" minOccurs="0" />
            <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="WebBreaks" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Product" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="OtherDate" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="UsageStatus" type="usageStatus" use="required" />
        <xs:attribute name="ItemType" type="itemType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier pn:Identifier (1) (1)
RawMaterialSet pn:RawMaterialSet 0 unbounded
Quantity pn:Quantity 0 (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
WebBreaks pn:WebBreaks 0 unbounded
Product pn:Product 0 (1)
OtherParty pn:OtherParty 0 unbounded
OtherDate pn:OtherDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
UsageStatus pn:UsageStatus Required
ItemType pn:ItemType Required
