Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: AccountInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
Structure which contains information about the accounts involved in the transaction.

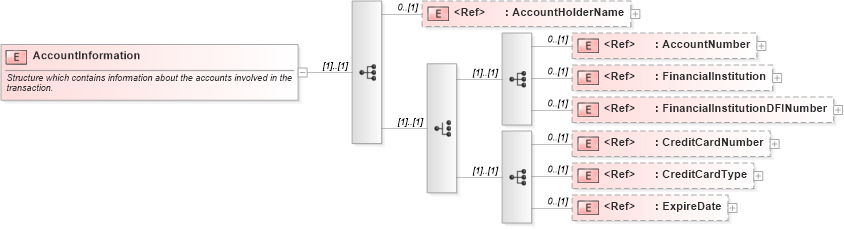

Collapse XSD Schema Diagram:
Drilldown into ExpireDate in schema pidxlib_xsd Drilldown into CreditCardType in schema pidxlib_xsd Drilldown into CreditCardNumber in schema pidxlib_xsd Drilldown into FinancialInstitutionDFINumber in schema pidxlib_xsd Drilldown into FinancialInstitution in schema pidxlib_xsd Drilldown into AccountNumber in schema pidxlib_xsd Drilldown into AccountHolderName in schema pidxlib_xsdXSD Diagram of AccountInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="AccountInformation">
    <annotation>
        <documentation>Structure which contains information about the accounts involved in the transaction.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="pidx:AccountHolderName" minOccurs="0" />
            <choice>
                <sequence>
                    <element ref="pidx:AccountNumber" minOccurs="0" />
                    <element ref="pidx:FinancialInstitution" minOccurs="0" />
                    <element ref="pidx:FinancialInstitutionDFINumber" minOccurs="0" />
                </sequence>
                <sequence>
                    <element ref="pidx:CreditCardNumber" minOccurs="0" />
                    <element ref="pidx:CreditCardType" minOccurs="0" />
                    <element ref="pidx:ExpireDate" minOccurs="0" />
                </sequence>
            </choice>
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AccountHolderName pidx:AccountHolderName 0 (1)
AccountNumber pidx:AccountNumber 0 (1)
FinancialInstitution pidx:FinancialInstitution 0 (1)
FinancialInstitutionDFINumber pidx:FinancialInstitutionDFINumber 0 (1)
CreditCardNumber pidx:CreditCardNumber 0 (1)
CreditCardType pidx:CreditCardType 0 (1)
ExpireDate pidx:ExpireDate 0 (1)
