Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: CarrierInformation
Namespace: http://www.api.org/pidXML
Type: pidx:CarrierInformationType
Containing Schema: BillOfLadingCreate.xsd
Abstract
Documentation:
Specifies information pertaining to the carrier (a.k.a. hauler) of the product.

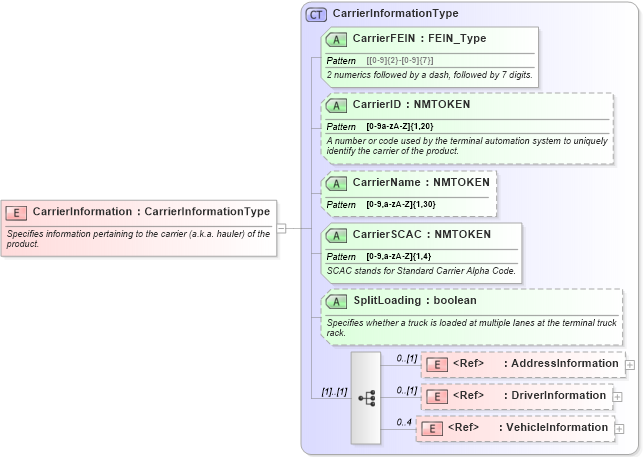

Collapse XSD Schema Diagram:
Drilldown into VehicleInformation in schema billofladingcreate_xsd Drilldown into DriverInformation in schema billofladingcreate_xsd Drilldown into AddressInformation in schema pidxlib_xsd Drilldown into SplitLoading in schema billofladingcreate_xsd Drilldown into CarrierSCAC in schema billofladingcreate_xsd Drilldown into CarrierName in schema billofladingcreate_xsd Drilldown into CarrierID in schema billofladingcreate_xsd Drilldown into CarrierFEIN in schema billofladingcreate_xsd Drilldown into CarrierInformationType in schema billofladingcreate_xsdXSD Diagram of CarrierInformation in schema billofladingcreate_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="CarrierInformation" type="pidx:CarrierInformationType">
    <annotation>
        <documentation>Specifies information pertaining to the carrier (a.k.a. hauler) of the product.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressInformation pidx:AddressInformation 0 (1)
DriverInformation pidx:DriverInformation 0 (1)
VehicleInformation pidx:VehicleInformation 0 4
Collapse Child Attributes:
Name Type Default Value Use
CarrierFEIN pidx:CarrierFEIN Required
CarrierID pidx:CarrierID (Optional)
CarrierName pidx:CarrierName (Optional)
CarrierSCAC pidx:CarrierSCAC Required
SplitLoading pidx:SplitLoading (Optional)
Collapse Derivation Tree:
