Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: ChangeOrderInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Collapse XSD Schema Diagram:

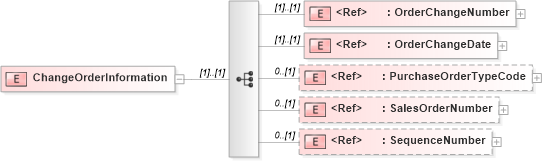

Drilldown into SequenceNumber in schema pidxlib_xsd Drilldown into SalesOrderNumber in schema pidxlib_xsd Drilldown into PurchaseOrderTypeCode in schema pidxlib_xsd Drilldown into OrderChangeDate in schema pidxlib_xsd Drilldown into OrderChangeNumber in schema pidxlib_xsdXSD Diagram of ChangeOrderInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="ChangeOrderInformation">
    <complexType>
        <sequence>
            <element ref="pidx:OrderChangeNumber" />
            <element ref="pidx:OrderChangeDate" />
            <element ref="pidx:PurchaseOrderTypeCode" minOccurs="0" />
            <element ref="pidx:SalesOrderNumber" minOccurs="0" />
            <element ref="pidx:SequenceNumber" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrderChangeNumber pidx:OrderChangeNumber (1) (1)
OrderChangeDate pidx:OrderChangeDate (1) (1)
PurchaseOrderTypeCode pidx:PurchaseOrderTypeCode 0 (1)
SalesOrderNumber pidx:SalesOrderNumber 0 (1)
SequenceNumber pidx:SequenceNumber 0 (1)
Documentation for PIDX - Petroleum Industry Data Exchange

Generated using Liquid Studio - Developer Bundle 21.0.0.0
