Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: ContactInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
Structure which contains the information for contacting a person, organization or business.

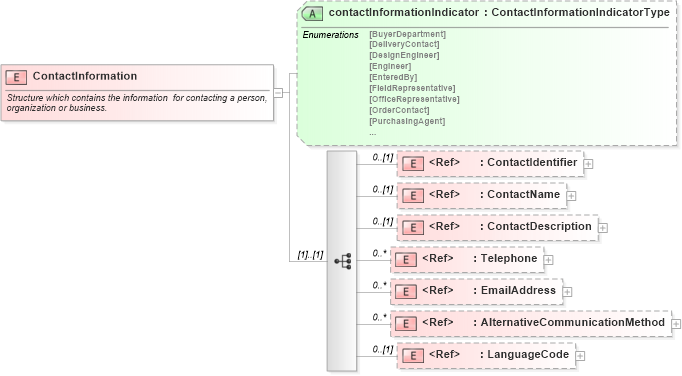

Collapse XSD Schema Diagram:
Drilldown into LanguageCode in schema pidxlib_xsd Drilldown into AlternativeCommunicationMethod in schema pidxlib_xsd Drilldown into EmailAddress in schema pidxlib_xsd Drilldown into Telephone in schema pidxlib_xsd Drilldown into ContactDescription in schema pidxlib_xsd Drilldown into ContactName in schema pidxlib_xsd Drilldown into ContactIdentifier in schema pidxlib_xsd Drilldown into contactInformationIndicator in schema pidxlib_xsdXSD Diagram of ContactInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="ContactInformation">
    <annotation>
        <documentation>Structure which contains the information  for contacting a person, organization or business.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="pidx:ContactIdentifier" minOccurs="0" />
            <element ref="pidx:ContactName" minOccurs="0" />
            <element ref="pidx:ContactDescription" minOccurs="0" />
            <element ref="pidx:Telephone" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:EmailAddress" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:AlternativeCommunicationMethod" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:LanguageCode" minOccurs="0" />
        </sequence>
        <attribute name="contactInformationIndicator" type="pidx:ContactInformationIndicatorType" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContactIdentifier pidx:ContactIdentifier 0 (1)
ContactName pidx:ContactName 0 (1)
ContactDescription pidx:ContactDescription 0 (1)
Telephone pidx:Telephone 0 unbounded
EmailAddress pidx:EmailAddress 0 unbounded
AlternativeCommunicationMethod pidx:AlternativeCommunicationMethod 0 unbounded
LanguageCode pidx:LanguageCode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
contactInformationIndicator pidx:contactInformationIndicator (Optional)
