Definition Type: Element
Name: ConveyanceInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
Structure containing transportation and shipping information.

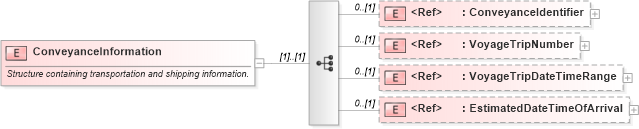

Collapse XSD Schema Diagram:
Drilldown into EstimatedDateTimeOfArrival in schema pidxlib_xsd Drilldown into VoyageTripDateTimeRange in schema pidxlib_xsd Drilldown into VoyageTripNumber in schema pidxlib_xsd Drilldown into ConveyanceIdentifier in schema pidxlib_xsdXSD Diagram of ConveyanceInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="ConveyanceInformation">
    <annotation>
        <documentation>Structure containing transportation and shipping information.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="pidx:ConveyanceIdentifier" minOccurs="0" />
            <element ref="pidx:VoyageTripNumber" minOccurs="0" />
            <element ref="pidx:VoyageTripDateTimeRange" minOccurs="0" />
            <element ref="pidx:EstimatedDateTimeOfArrival" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConveyanceIdentifier pidx:ConveyanceIdentifier 0 (1)
VoyageTripNumber pidx:VoyageTripNumber 0 (1)
VoyageTripDateTimeRange pidx:VoyageTripDateTimeRange 0 (1)
EstimatedDateTimeOfArrival pidx:EstimatedDateTimeOfArrival 0 (1)
