Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: CustodyTicket
Namespace: http://www.api.org/pidXML
Containing Schema: CustodyTicket.xsd
Abstract

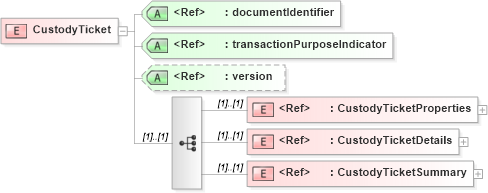

Collapse XSD Schema Diagram:
Drilldown into CustodyTicketSummary in schema custodyticket_xsd Drilldown into CustodyTicketDetails in schema custodyticket_xsd Drilldown into CustodyTicketProperties in schema custodyticket_xsd Drilldown into version in schema pidxlib_xsd Drilldown into transactionPurposeIndicator in schema pidxlib_xsd Drilldown into documentIdentifier in schema pidxlib_xsdXSD Diagram of CustodyTicket in schema custodyticket_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="CustodyTicket">
    <complexType>
        <sequence>
            <element ref="pidx:CustodyTicketProperties" />
            <element ref="pidx:CustodyTicketDetails" />
            <element ref="pidx:CustodyTicketSummary" />
        </sequence>
        <attribute ref="pidx:documentIdentifier" use="required" />
        <attribute ref="pidx:transactionPurposeIndicator" use="required" />
        <attribute ref="pidx:version" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustodyTicketProperties pidx:CustodyTicketProperties (1) (1)
CustodyTicketDetails pidx:CustodyTicketDetails (1) (1)
CustodyTicketSummary pidx:CustodyTicketSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
documentIdentifier pidx:documentIdentifier Required
transactionPurposeIndicator pidx:transactionPurposeIndicator Required
version pidx:version Optional
